Installing Trim Strip For Dashboard (Cup Holder)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position center trim strip -1-  on the cup holder and press in until it clicks into place.

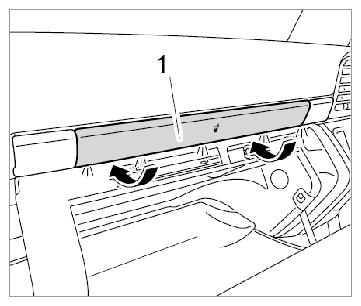

    Fig 1: Installing Center Trim Strip (Cup Holder)
    G09829220Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position left/right trim strip -1-  on the cup holder and press in until it clicks into place.

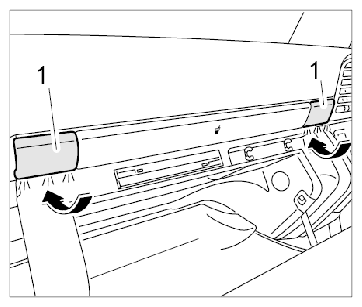

    Fig 2: Installing Left/Right Trim Strip (Cup Holder)
    G09829221Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Close glove compartment.
