Installing Mounting For Fixing Clip

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert mounting for fixing clip into the slot on the roof frame and slide it forward fully in -direction of arrow-  .

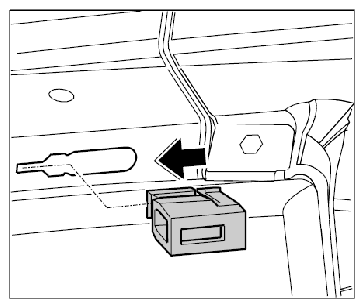

    Fig 1: Inserting Mounting For Fixing Clip Into Slot On Roof Frame
    G09829213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
