Installing Cover For Rear

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

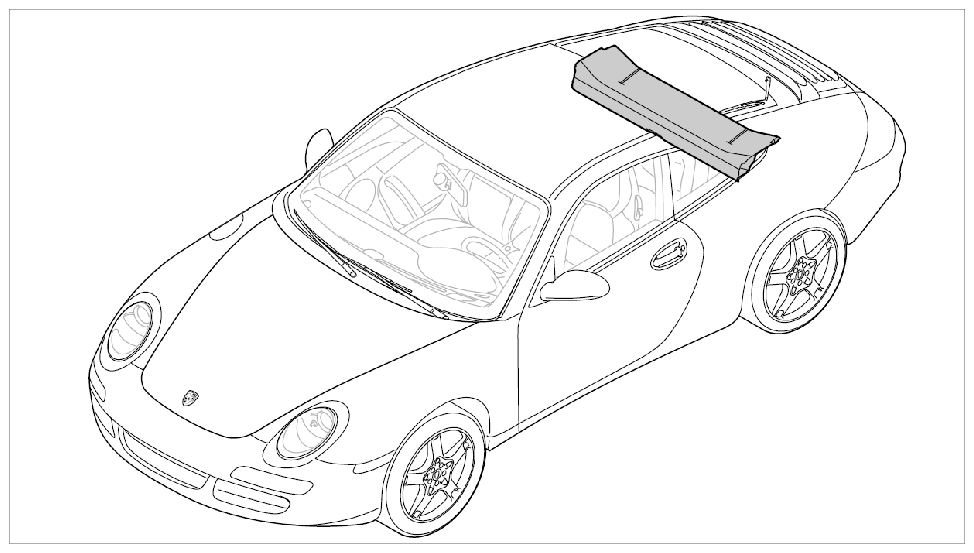

Fig 1: Identifying Rear Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert rear cover -1- sideways under the side trim panel -Arrow C- .

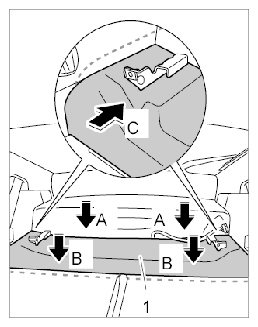

Fig 2: Installing Rear Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align rear cover -1- at the front and rear -Arrows A, B- .
