Removing Floor Covering

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

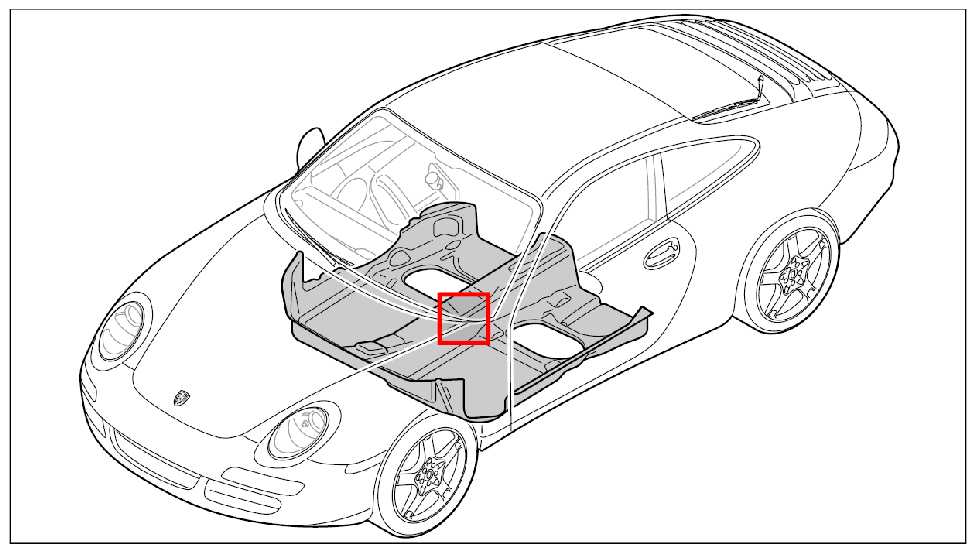

Fig 1: Identifying Floor Covering Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Detach floor covering -1- in the area around the bottom of the A-pillar (passenger's side) -Arrow A- .

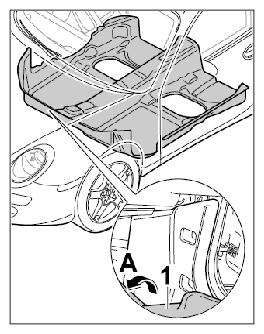

Fig 2: Detaching Floor Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach Velcro fasteners around the center tunnel.

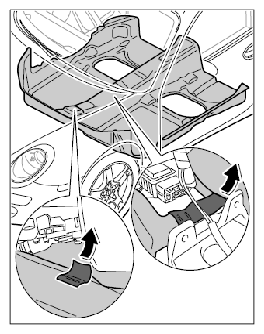

Fig 3: Loosening Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold together floor covering -1- in the sequence shown, -A, B, C- , and remove from the vehicle.

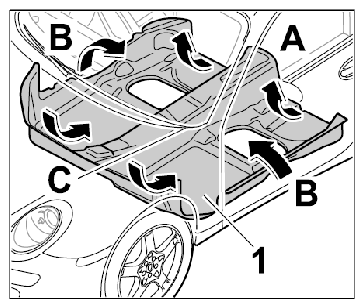

Fig 4: Removing Floor Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
