Installing Floor Covering

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert floor covering -1- in the vehicle and align in the sequence shown, -A, B, C- .

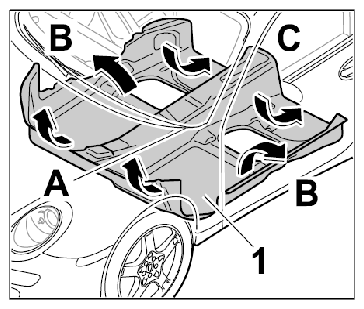

Fig 1: Installing Floor Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure Velcro fasteners around the center tunnel.

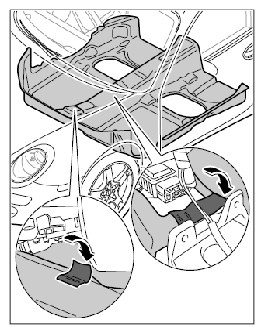

Fig 2: Securing Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure floor covering -1- in the area around the bottom of the A-pillar (passenger's side) -Arrow A- .

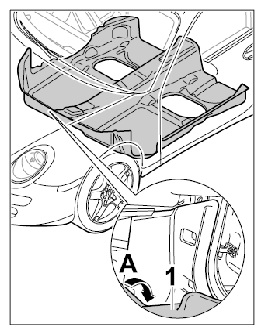

Fig 3: Securing Floor Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
