Removing Cover For Lock Mount

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open front lid.

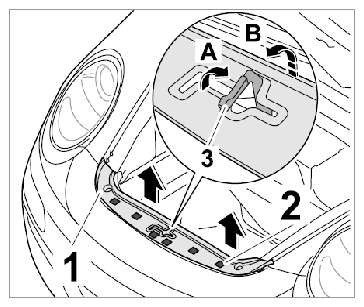

  2. Loosen cover for lock support -1-  at the Velcro fasteners -2-  .
    Fig 1: Loosening Trim Panel
    G09829172Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Actuate lid-release lever -3-  in -direction of arrow A-  and remove cover for lock support -1-  (-arrow B-  ).

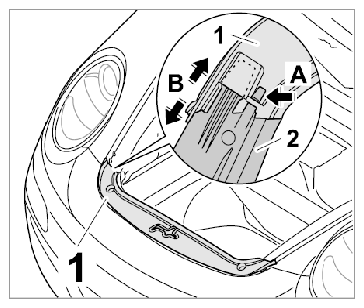

  4. Lift cover for lock support up slightly -1-  , release the locking tab at the side from below -arrow A-  and pull it out of the cover for the wing flange -2-  (-arrows B-  ).
    Fig 2: Unclipping Trim Panel
    G09829173Courtesy of PORSCHE CARS NORTH AMERICA, INC.
