Additional Assembly Instructions For Replacing Velcro Fasteners

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove protective paper on the underside, push locking lug into the cover for the wing flange and press trim panel for lock support -1-  down onto the front apron.

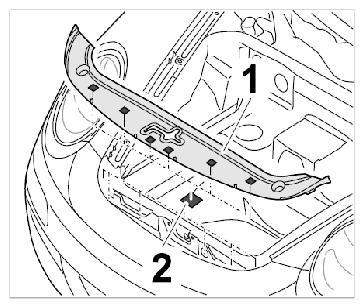

    Fig 1: Identifying Velcro Fasteners And Lock Support
    G09829177Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press Velcro fasteners -2-  on at the positions indicated.
  3. Lift off trim panel for lock support -1-  and press Velcro fasteners -2-  securely onto the front apron again using a suitable tool.
