Removing Bushing For Rear Backrest

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew bushing for rear backrest -1-  in -direction of arrow-  .

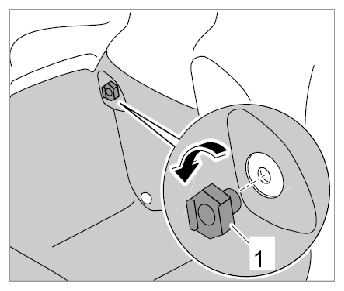

    Fig 1: Removing Bushing For Backrest
    G09829130Courtesy of PORSCHE CARS NORTH AMERICA, INC.
