Loosening Seat Belt And Fitting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lever off cap -1-  with a screwdriver -arrow-  .

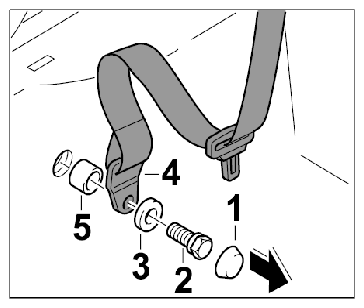

    Fig 1: Removing Seat Belt
    G09829129Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screw -2-  . Remove washer -3-  , seat belt mount -4-  and spacer sleeve -5-  .
