Installing Trim Panel For Seat Well: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

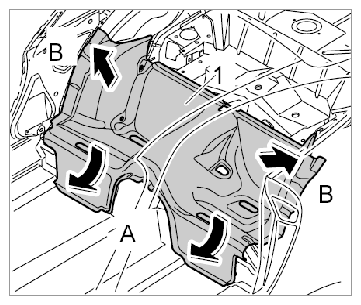

  1. Position trim panel for seat well -1-  under the carpet starting at the front -Arrows A-  , insert it -Arrows B-  and then align it.
    Fig 1: Installing Trim Panel For Seat Well
    G09829132Courtesy of PORSCHE CARS NORTH AMERICA, INC.
