Removing Cover For Instrument Panel (Defroster Cover) On Right And Left

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

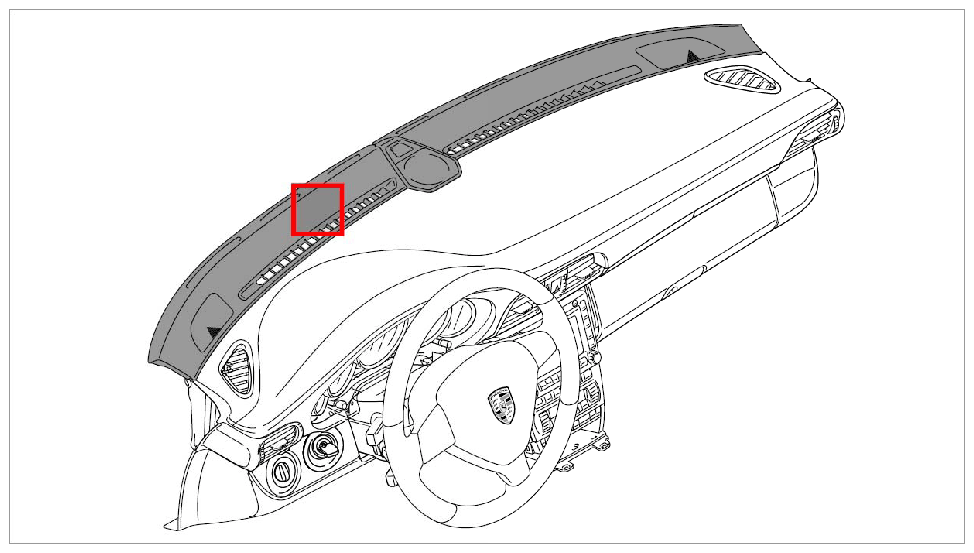

Fig 1: Overview Of Cover For Instrument Panel (Defroster Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert plastic wedge under instrument panel cover (defroster cover) left and right -4- and lever out of sheetmetal clips -5- .

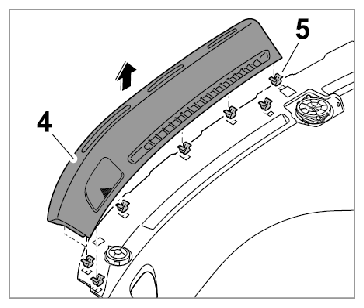

Fig 2: Removing Side Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
