Installing Cover For Centre Instrument Panel (Defroster Cover)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

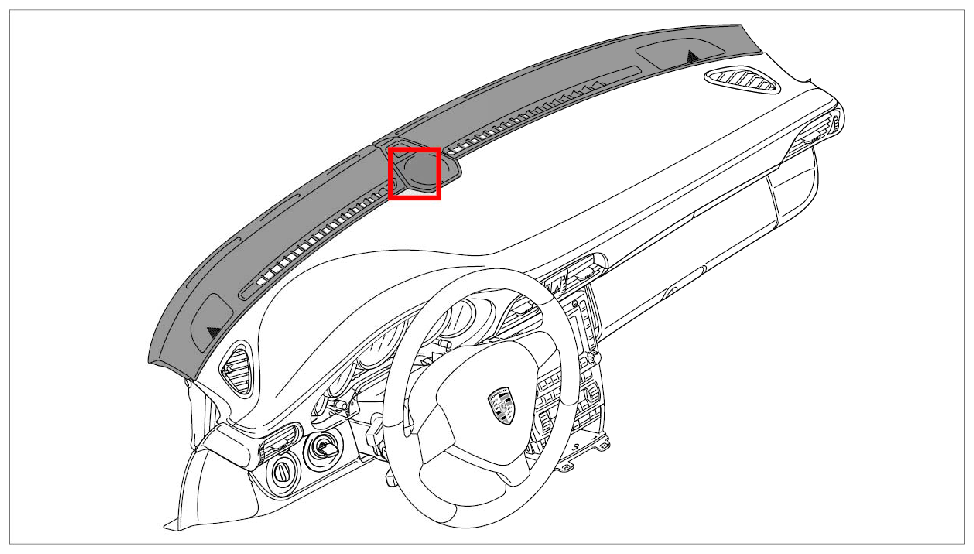

Fig 1: Overview Of Cover For Instrument Panel (Defroster Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock plug connection for sun sensor. → Removing and installing sun sensor.
Position cover for center dashboard (defroster cover) -1- and clip in -arrow- .

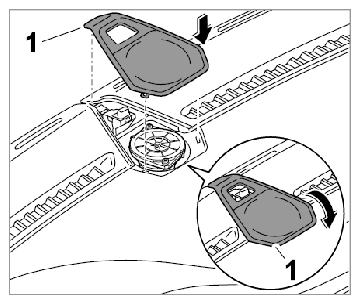

Fig 2: Installing Middle Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
