Undoing Intermediate Piece For Defroster Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

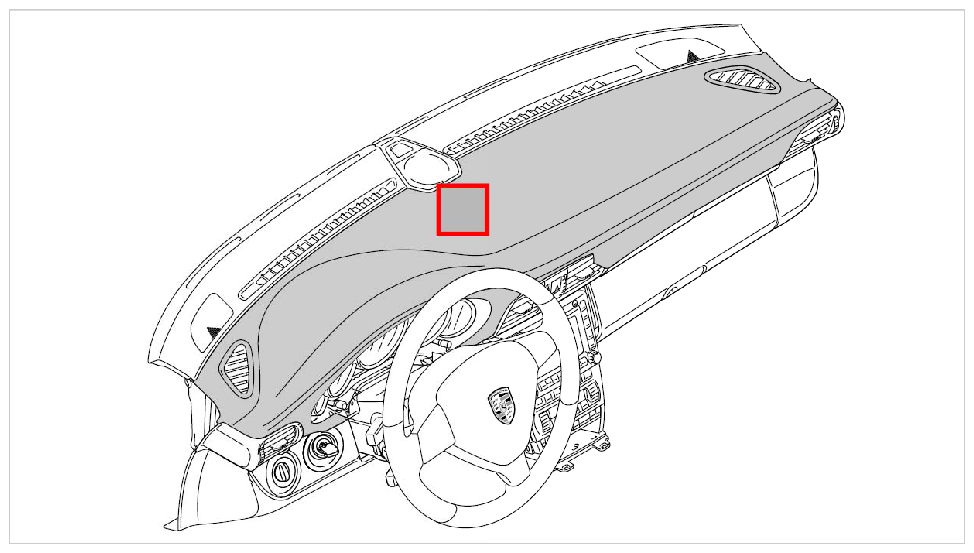

Fig 1: Overview Of Instrument Panel
G09829087Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  on defroster intermediate piece -2-  .

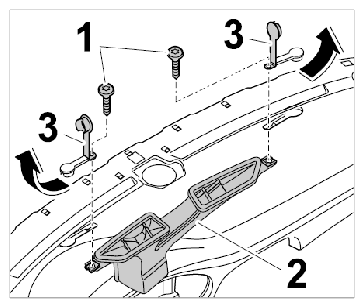

    Fig 2: Removing Intermediate Piece For Defroster Cover
    G09829088Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove defroster cover lid -3-  .
