Securing Intermediate Piece For Defroster Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

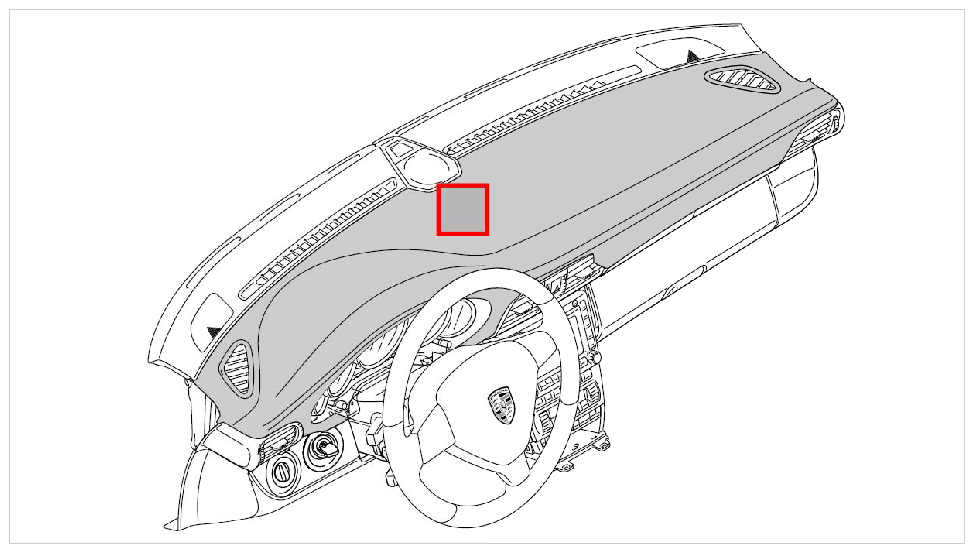

Fig 1: Overview Of Instrument Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

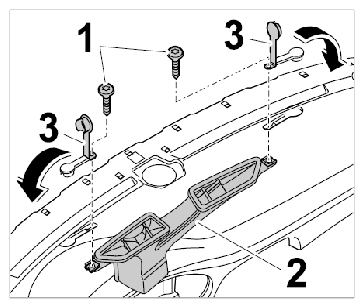

Position fastening screws -1- with the defroster cover lid -3- on the intermediate piece for the defroster cover -2- and tighten as required. Tightening torque → Final tightening: 3 Nm (ft. lb.) (2)

Fig 2: Securing Intermediate Piece For Defroster Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
