Installing Sound Absorber For Engine Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

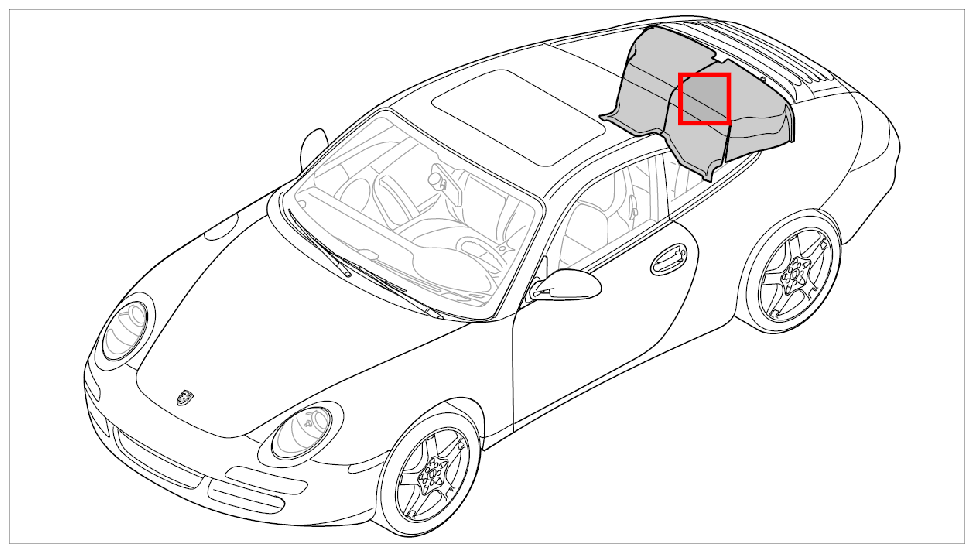

Fig 1: Identifying Sound Absorber For Engine Compartment Installation Position
G09829074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The fastening points must remain accessible when positioning the sound absorbers (insulation).

  1. Pull off protective film and stick sound absorber for engine compartment -1-  on the body.
    Fig 2: Installing Sound Absorber For Engine Compartment
    G09829075Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position retaining strip -3-  and secure with the plastic nuts -2-  .


Fig 1: Identifying Sound Absorber For Engine Compartment Installation Position
G09829083Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The fastening points must remain accessible when positioning the sound absorbers (insulation).

  1. Pull off protective film and stick sound absorber for engine compartment -1-  on the body.

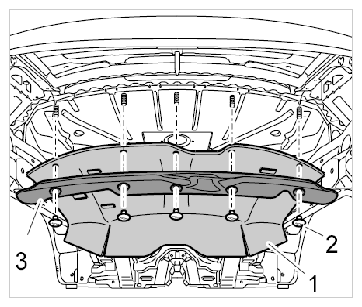

    Fig 2: Installing Sound Absorber For Engine Compartment
    G09829084Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position retaining strip -3-  and secure with the plastic nuts -2-  .
