Removing Foam Parts For Front Luggage Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

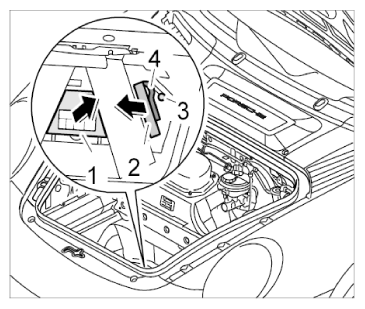

Remove tire pressure compressor -1- , tool kit -2- , adapter for security wheel bolts -3- and towing lug -4- in an upward direction -arrows- .

Fig 1: Removing Tire Pressure Compressor And Tool Kit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

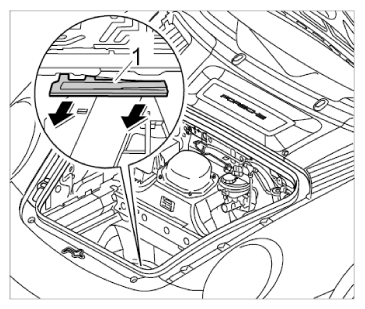

Pull off foam part for CD autochanger -1- (-arrows- ) and remove adhesive residue.
Only for vehicles with CD autochanger.

Fig 2: Removing Foam Part For CD Autochanger
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

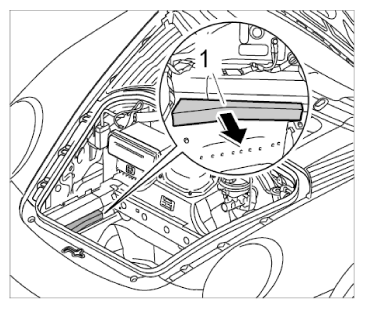

Pull off foam part for bulkhead -1- (-arrows- ).

Fig 3: Removing Foam Part For Bulkhead
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take control unit for cornering light out of the foam part -1- and remove adhesive residue.
Pull off foam part for luggage compartment liner/tool kit -1- (-arrow- ) and remove adhesive residue.

Fig 4: Removing Foam Part For Luggage Compartment Liner/Tool Kit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

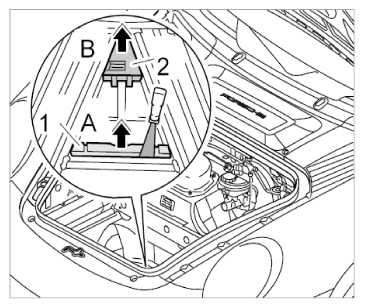

Loosen foam part for front compressor -1- using a spatula and pull it off -arrow A- . Remove adhesive residue.

Fig 5: Removing Foam Parts For Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen foam part for rear compressor -2- using a spatula and pull it off -arrow B- . Remove adhesive residue.
