Installing Foam Parts For Front Luggage Compartment

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Keep bonding areas clean and free of grease.

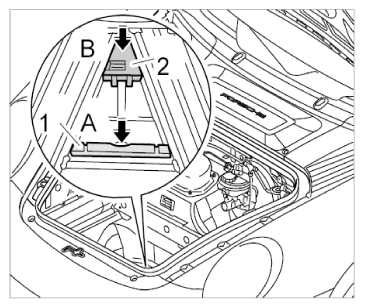

Apply body sealant to the foam part for the front compressor -1- and stick it on -arrow A- .

Fig 1: Sticking On Foam Parts For Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Apply body sealant to the foam part for the rear compressor -2- and stick it on -arrow B- .
Apply body sealant to the foam part for the luggage compartment liner/tool kit -1- and stick it on -arrow- .

Fig 2: Installing Foam Part For Luggage Compartment Liner/Tool Kit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

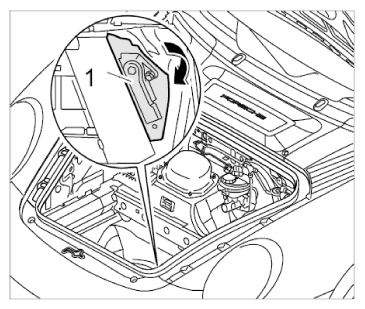

Fit control unit for cornering light into the foam part for the bulkhead -1- .

Fig 3: Installing Foam Part For Bulkhead
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

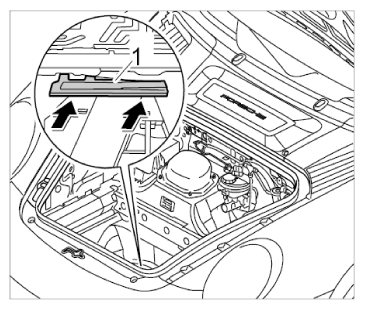

Apply body sealant to the foam part for the bulkhead -1- and stick it on -arrows- .

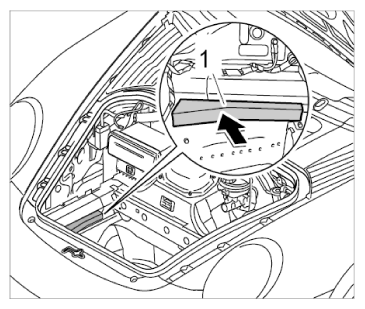

Pull off protective film and stick on foam part for CD autochanger -1- (-arrow- ).
Only for vehicles with CD autochanger.

Fig 4: Installing Foam Part For CD Autochanger
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

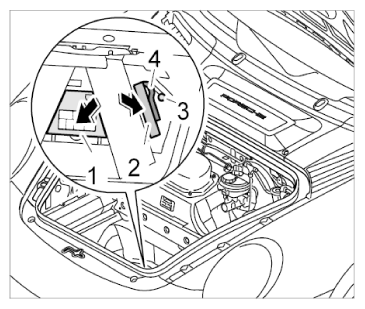

Place tire pressure compressor -1- , towing lug -4- , tool kit -2- and adapter for security wheel bolts -3- into the luggage compartment -arrows- .

Fig 5: Installing Tyre Pressure Compressor And Tool Kit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
