Removing Cover For Wing Flange

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open front lid.
  2. Loosen cover for wing flange -2-  at the Velcro fasteners -3-  .

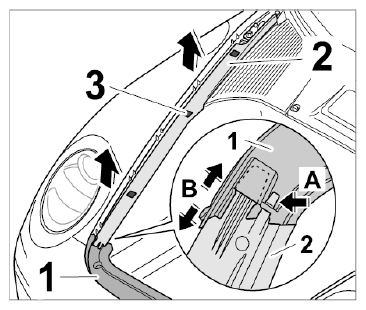

    Fig 1: Removing Cover For Wing Flange
    G09829039Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Lift cover for wing flange up slightly -2-  , release the locking tab at the side from below -arrow A-  and pull it out of the cover for the lock support -1-  (-arrows B-  ).
