Lubricating Convertible-Top Compartment Lid

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

→, → REMOVING TRIM PANEL FOR HOOD COMPARTMENT

Lubricate latching hook -1- on hinge for convertible-top compartment lid at the left and right with Krytox GPL.
Lubricate gate link -2- on hinge for convertible-top compartment lid at the left and right with Castrol Optitemp LG 2.

Lubricate driver -3- on hinge for convertible-top compartment lid at the left and right with Castrol Optitemp LG 2.

Lubricate locking hook -4- with Krytox GPL.

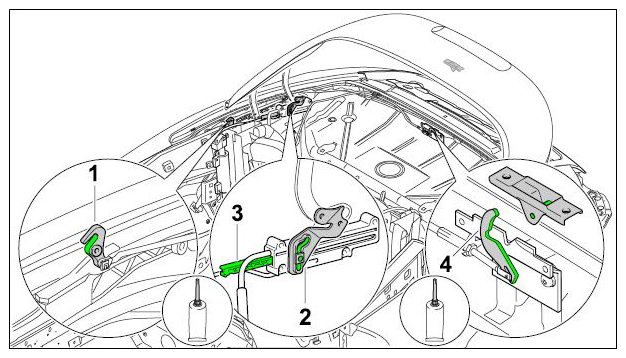

Fig 1: Lubricating Convertible-Top Compartment Lid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ INSTALLING TRIM PANEL FOR HOOD COMPARTMENT
