Lubricating Convertible Top

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate thrust wedge -1-  and roof frame fitting -2-  on the left and right with Krytox GPL.

    Lubricate sealing lip -3-  on the tension bow seal by applying Osixo Anti Squeak 557 all the way round.

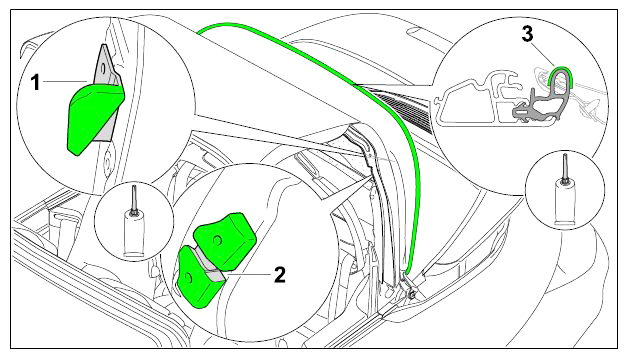

    Fig 1: Lubricating Convertible Top
    G09819121Courtesy of PORSCHE CARS NORTH AMERICA, INC.
