Removing TPM Antenna

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connection -1-  (-a-  ).

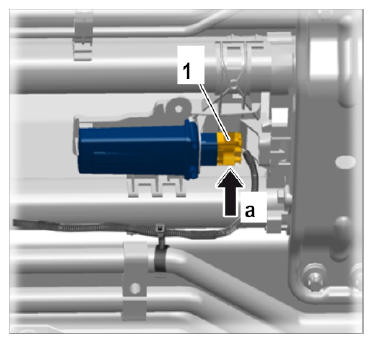

    Fig 1: Locating Electric Plug Connection
    G09825896Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove TPM antenna -1-  with holder -2-  .
    1. 2.1. Disengage locking mechanism -a-  and push holder -2-  with TPM antenna -1-  5 cm forward.

      Information

      Do not detach TPM antenna from the holder!

    2. 2.2. Unclip holder -2-  from the coolant pipes -3-  and remove it.

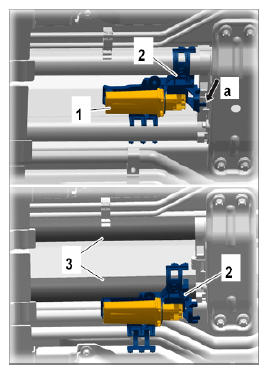

      Fig 2: Removing TPM Antenna With Holder
      G09825897Courtesy of PORSCHE CARS NORTH AMERICA, INC.
