Reading Out And Erasing Fault Memories

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The PIWIS Tester II 9818  is connected to the vehicle via a diagnostic socket. The diagnostic socket is located inside the vehicle in the vicinity of the driver's A-pillar below the dashboard.

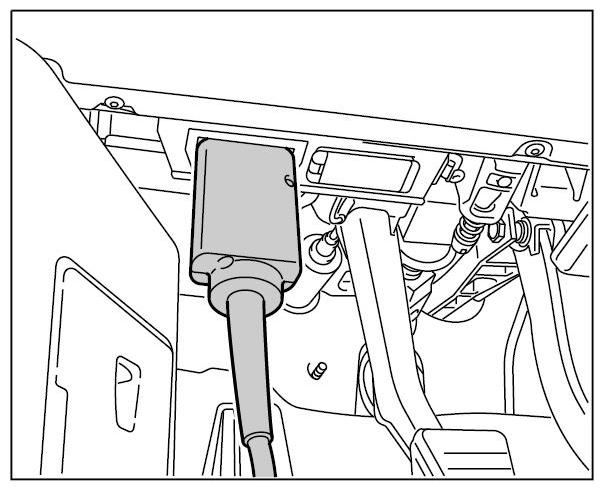

Fig 1: Identifying Diagnostic Socket
G09819119Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Start PIWIS Tester II 9818  and follow the instructions on the Tester.
  2. Select vehicle type, press F12 and start the automatic control unit search.
  3. If an asterisk appears in front of the relevant control unit, read out the fault memory and follow the instructions on the Tester.
