Fitting Front Spoiler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Raise the vehicle on a platform lift in order to fit the front spoiler.

The 911 Turbo is set lower as standard in order to lower the center of gravity of the vehicle. The front spoiler is not fitted for protection when loading and unloading the vehicle. The front spoiler included with the vehicle must be fitted before delivery.

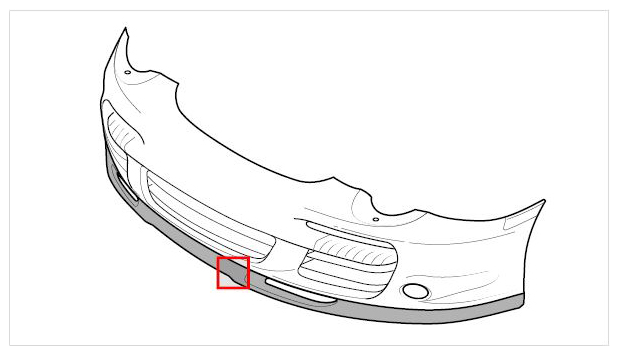

Fig 1: Identifying Installation Position Of Front Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

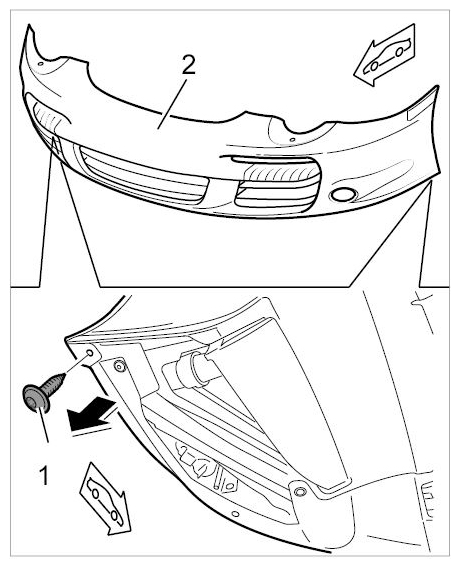

Unscrew fastening screw -1- at the lower left and right on the front wheel housing liner on the front apron -2- .

Fig 2: Unscrewing Fastening Screw On Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The front spoiler must be secured outwards starting at the center.

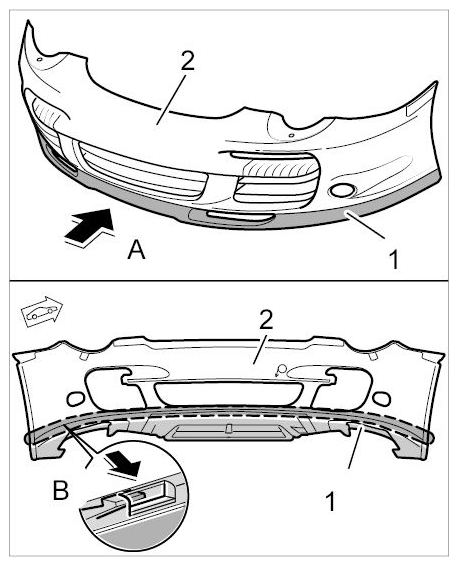

Position the front spoiler -1- on the front apron -2- (-Arrow A- ) and press it in until the locking lugs engage -Arrow B- .

Fig 3: Installing Front Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

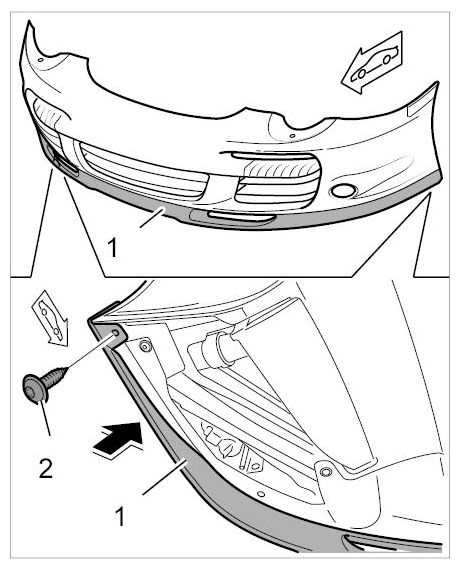

Secure front spoiler -1- with the fastening screw -2- at the lower left and right of the front wheel housing liner.
→ Tightening torque: 2.8 Nm (2.0 ftlb.)

Fig 4: Screwing In Front Spoiler On Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
