Removing Starter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Live components

Risk of electric shock

→ Remove electric charge from component.

→ Make sure it does not switch on again.

→ Check that there is no electric charge

→ Cover adjacent live parts.

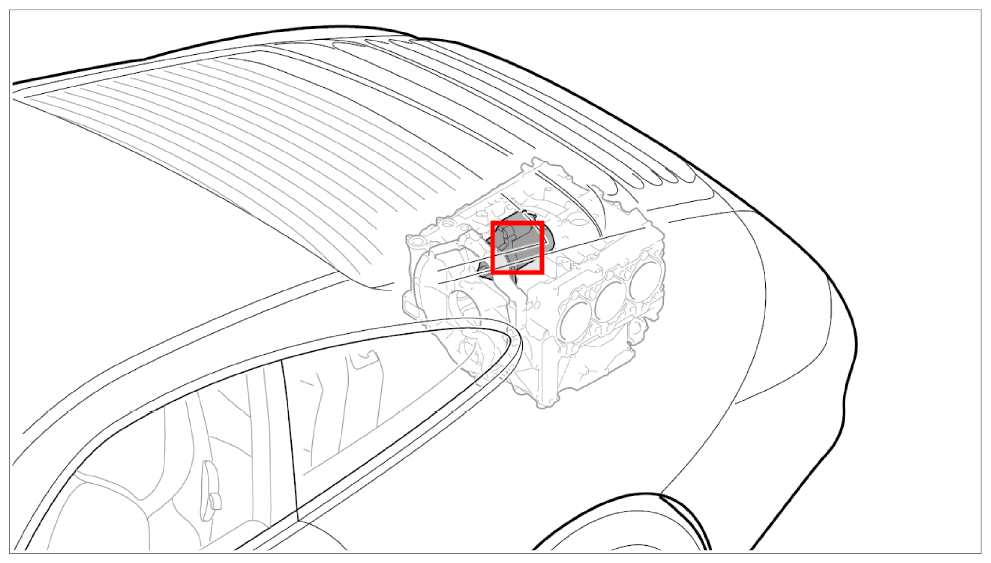

Fig 1: Identifying Starter Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove cap.

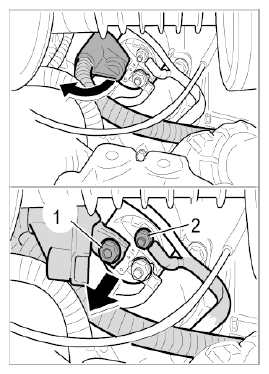

Fig 2: Removing Electric Lines Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off the two fastening nuts -1, 2- and remove the lines.
Unscrew the two fastening screws -3- for the starter and remove the starter.

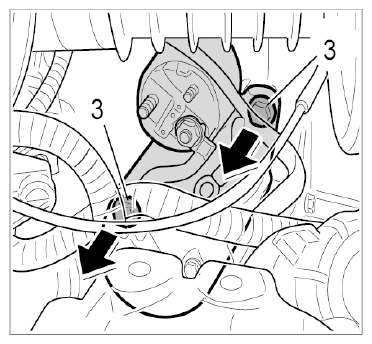

Fig 3: Removing Starter Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
