Installing Starter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit the starter.

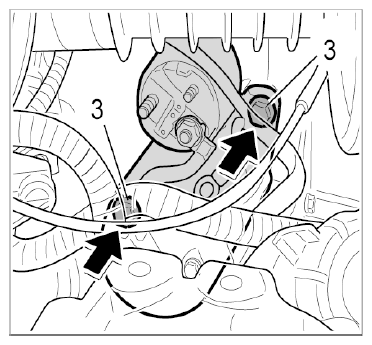

Screw in the two fastening screws -3- for the starter. → Tightening torque: 45 Nm (33 ftlb.)

Fig 1: Installing Starter Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

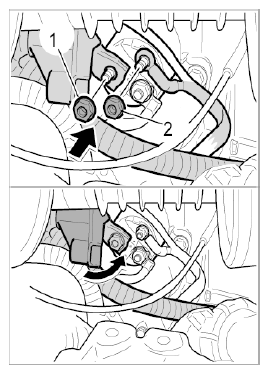

Fit the lines and screw on the two fastening nuts -1, 2- . → Tightening torque: 18 Nm (13 ftlb.) → Tightening torque: 6.5 Nm (5.0 ftlb.)

Fig 2: Installing Electric Lines Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the cap.
