Technical Values
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

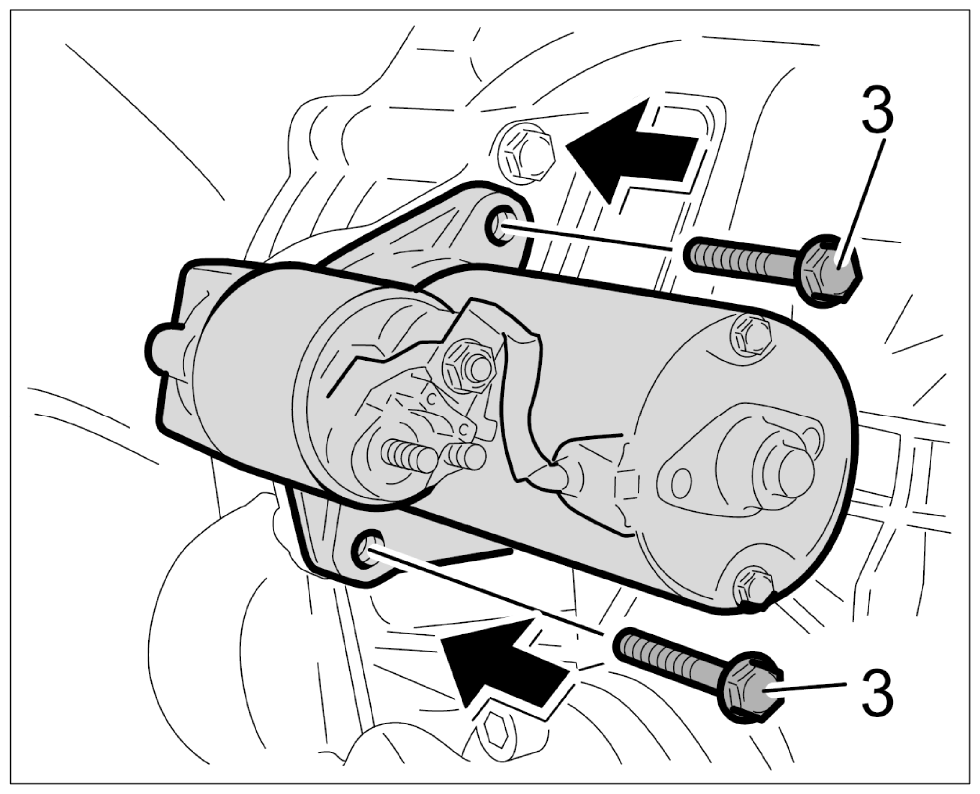

| Fastening screw securing starter to transmission | -3- | Tightening torque | 46 Nm (34 ftlb.) | ||
|
Securing starter |
|||||

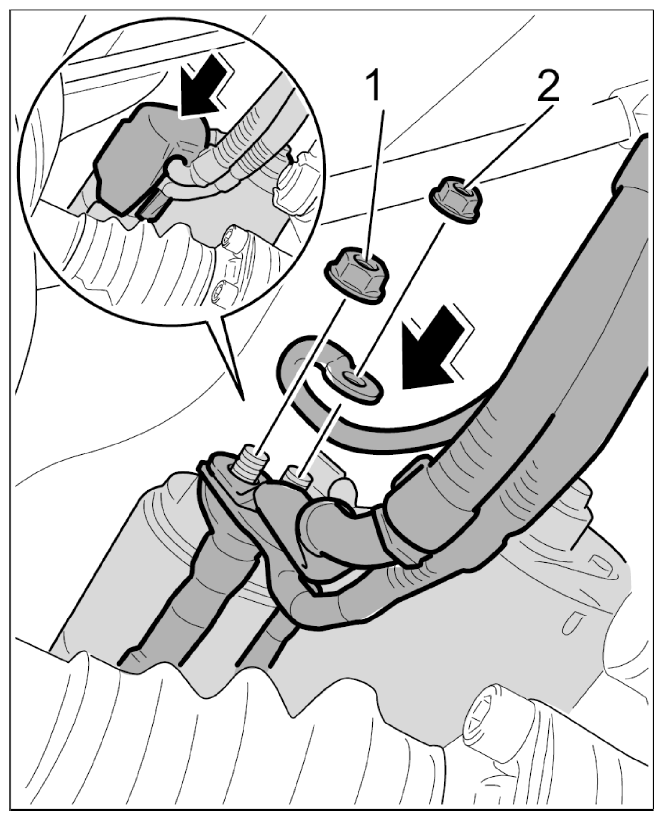

| Fastening nut securing B+ line from battery to starter | -1- | Tightening torque | 18 Nm (13 ftlb.) | ||
|
Connecting electric lines to starter |
|||||
| Fastening nut securing B+ line to engine | -2- | Tightening torque | 6.5 Nm (5.0 ftlb.) | ||
