Removing Starter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

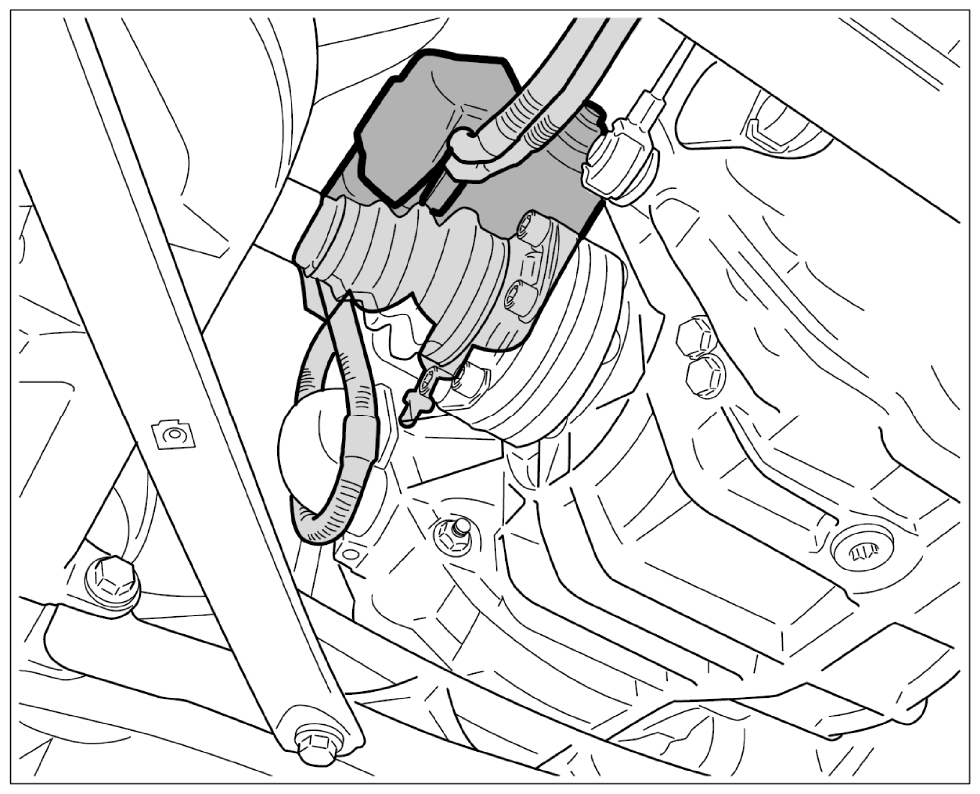

Fig 1: Identifying Starter Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Danger of fatal injurs and fire damage.

Although the operating voltage of the vehicle electrical system is only 12 volts, there is a danger of burns and risk of fire damage because of the battery's high energy content. A short circuit can result in extremely high currents!

↓

→ Remove ignition key, disconnect ground terminal on battery before starting any assembly work and insulate ground lead from battery terminal.

Remove the protection cap on the solenoid switch and unscrew and remove the fastening nuts for line terminal 30 -1- , terminal 50 -2- on the starter.

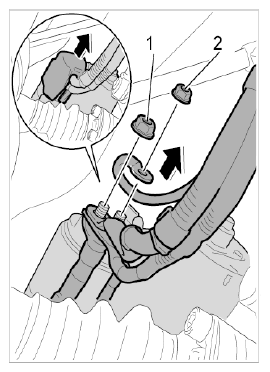

Fig 2: Removing Solenoid Switch Protection Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use the following 3/8-inch tool to remove the upper fastening screw on the starter: two short extensions, universal joint, hexagon socket-wrench insert a/f 15 or Torx, cross handle or ratchet.
Unscrew upper fastening screw on the starter -3- .
Unscrew lower fastening screw -3- .

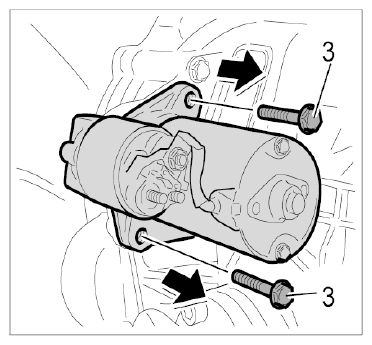

Fig 3: Removing Starter Fastening Screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the starter from the transmission and turn it so that the solenoid switch is facing towards the halfshaft. Remove starter in a downward direction.
