Installing The Starter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Position starter on the transmission and secure in place with the two fastening screws -3- . → Tightening torque: 46 Nm (34 ftlb.)

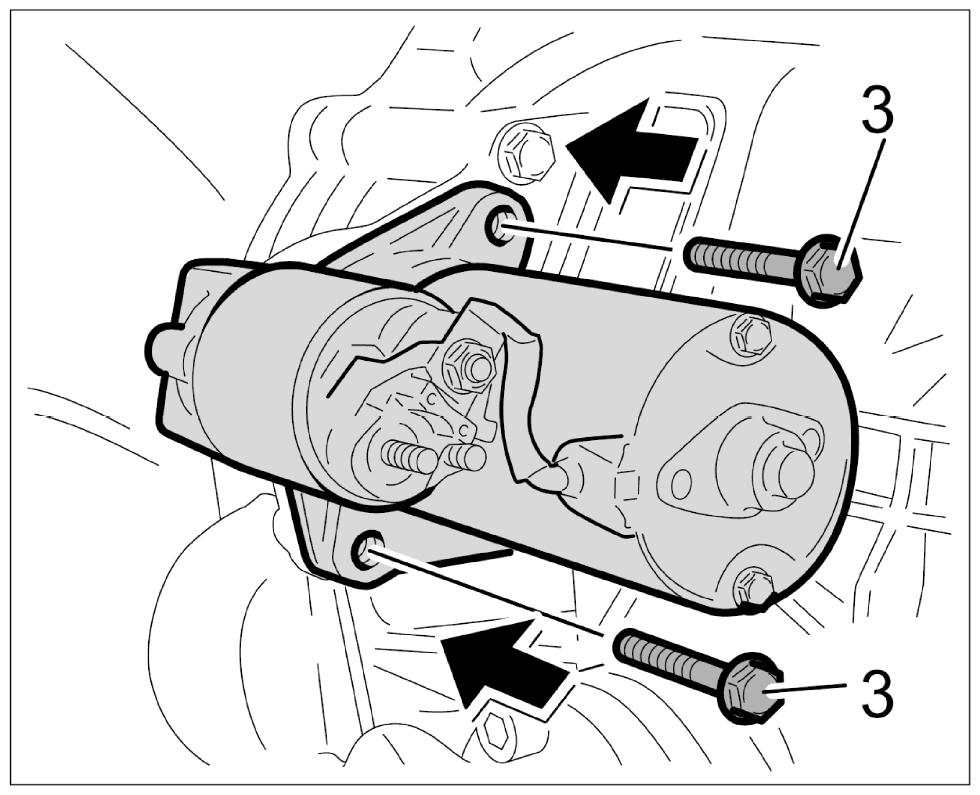

Fig 1: Installing Starter Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit B+ line from battery and B+ line from engine B+ connection point to terminal 30 (M8 nut) -1- on the solenoid switch and secure it. Secure line for terminal 50 (M6 nut) -2- to solenoid switch. → Tightening torque: 18 Nm (13 ftlb.)

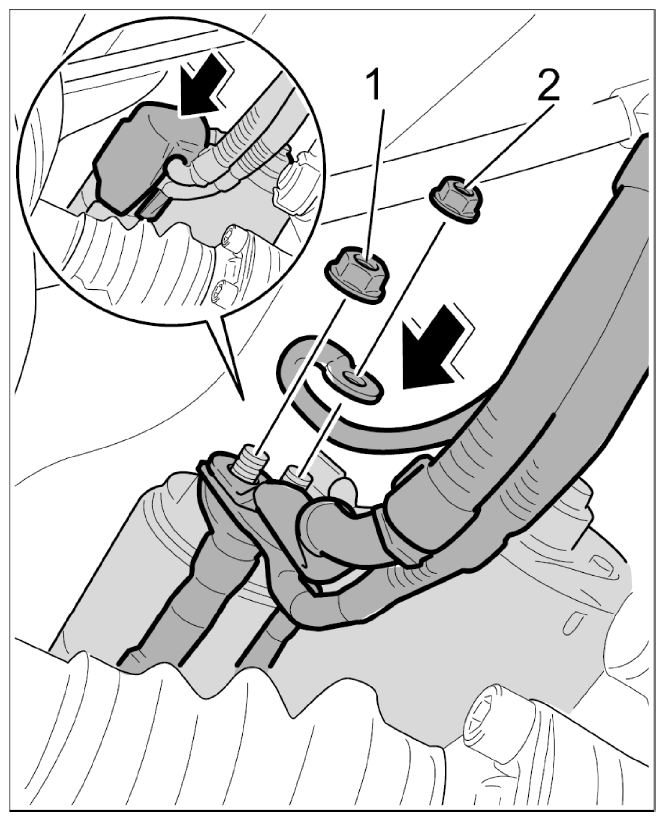

Fig 2: Connecting Starter Electric Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Tightening torque: 6.5 Nm (5.0 ftlb.)
Push protective cap over the solenoid switch and engage on the B+ line.
