Technical Values
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

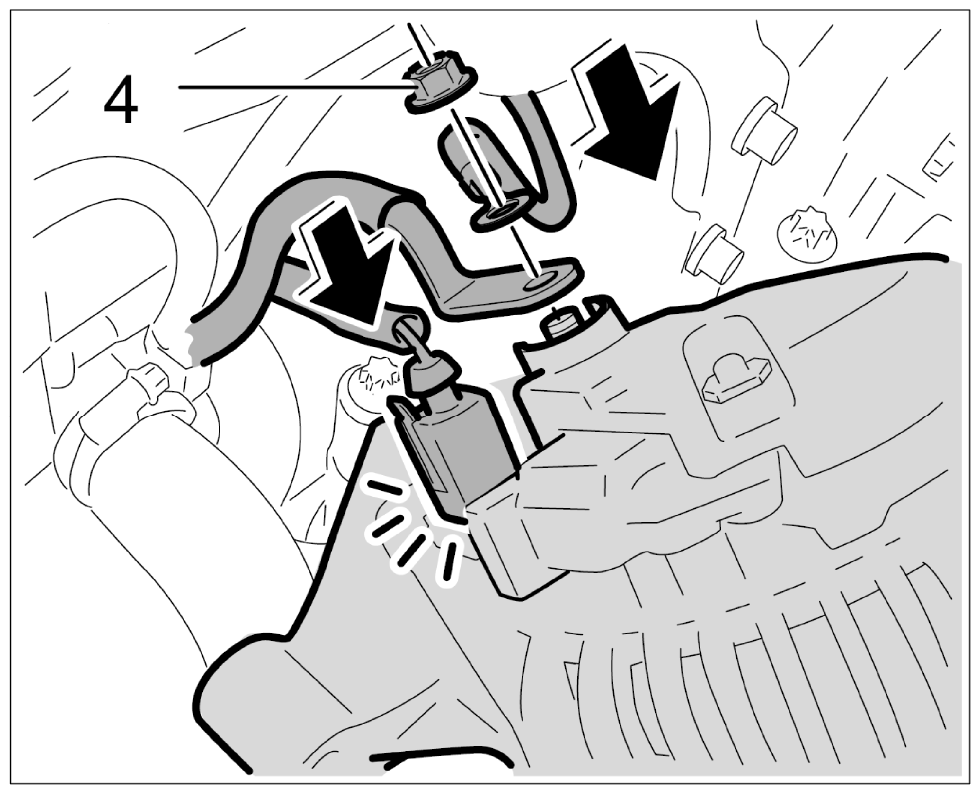

| Fastening nut securing B+ line to generator | -4- | Tightening torque | 18 Nm (13 ftlb.) | ||
|
Connecting electric lines |
|||||

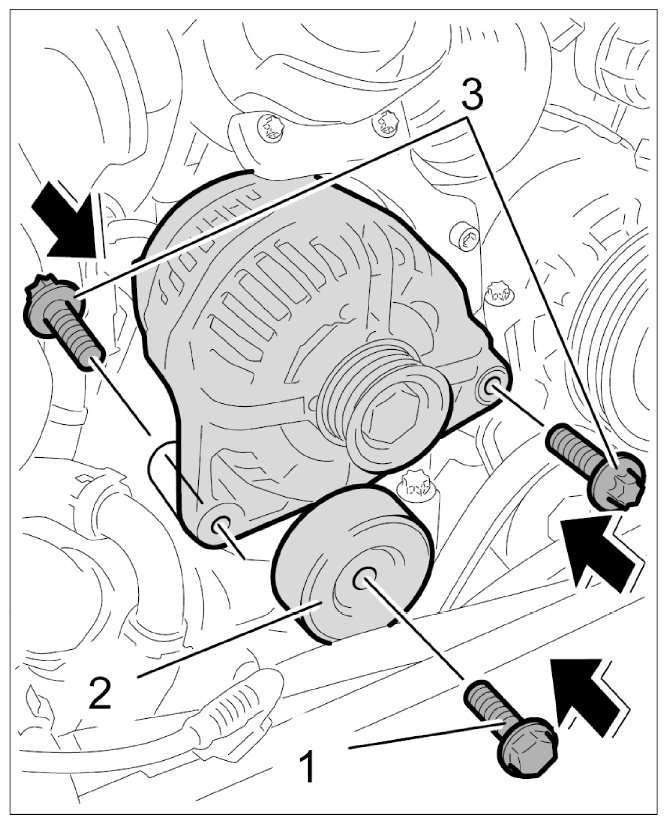

| Fastening screws securing generator to bracket | -3- | Tightening torque | 45 Nm (33 ftlb.) | ||
|
Securing the generator |
|||||
| Fastening screw securing deflection roller to crankcase | -1- | Tightening torque | 46 Nm (34 ftlb.) | ||
|
Securing the generator |
|||||
