Removing The Generator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of fatal injurs and fire damage.

Although the operating voltage of the vehicle electrical system is only 12 volts, there is a danger of burns and risk of fire damage because of the battery's high energy content. A short circuit can result in extremely high currents!

→ Remove ignition key, disconnect ground terminal on battery before starting any assembly work and insulate ground lead from battery terminal.

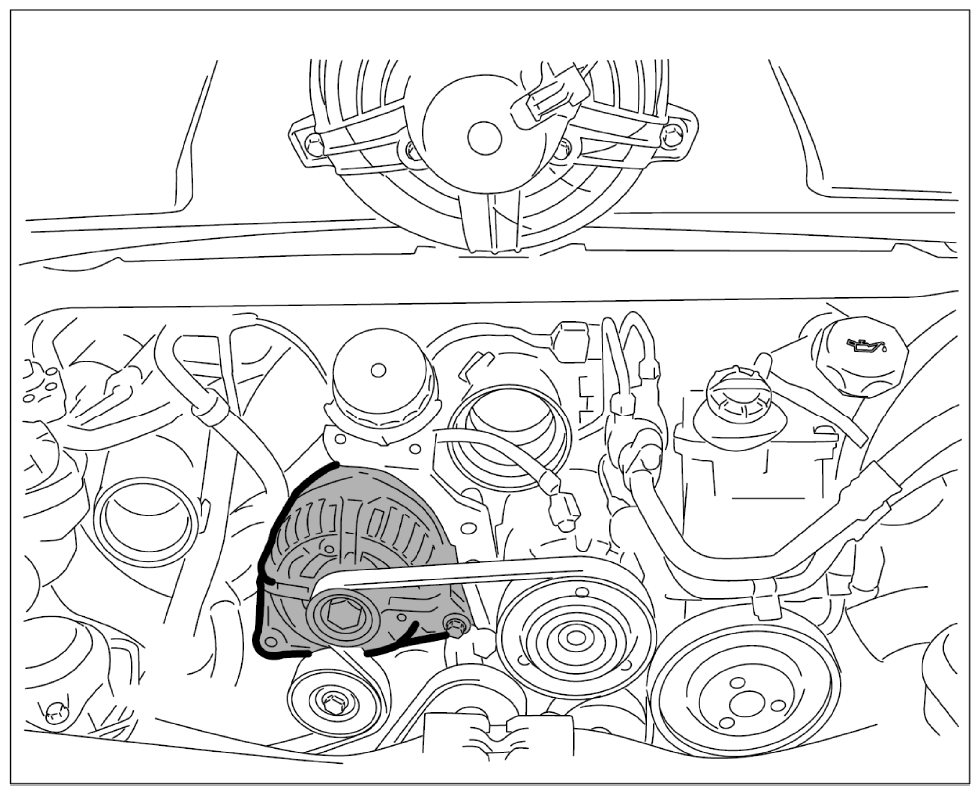

Fig 1: Identifying Generator Position (911 Turbo Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew the fastening screw -1- on the deflection roller -2- in front of the generator and remove the deflection roller.
Unscrew the two fastening screws -3- for the generator and remove them.

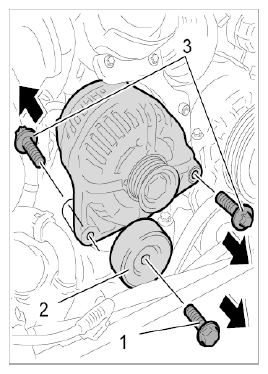

Fig 2: Removing Deflection Roller (911 Turbo Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert a screwdriver between the generator and the bracket and press the generator out to the left.

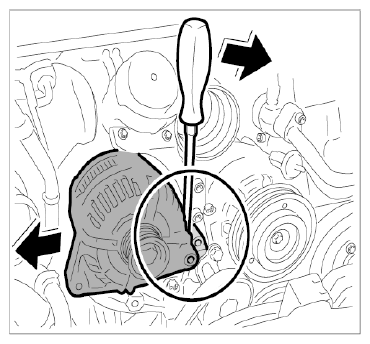

Fig 3: Removing Generator (911 Turbo Engine)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tilt the generator forwards, unscrew the fastening nut -4- for the B+ line and remove the line on the generator.
Release the electric connector on the generator -a- and remove it. Take out the generator.

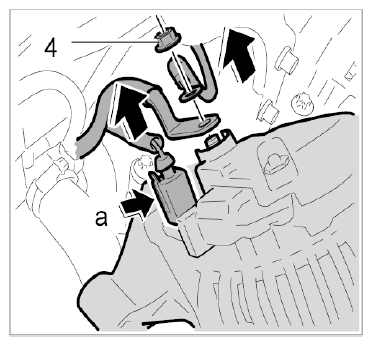

Fig 4: Removing Electric Lines (911 Turbo Engine)
