Removing Generator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

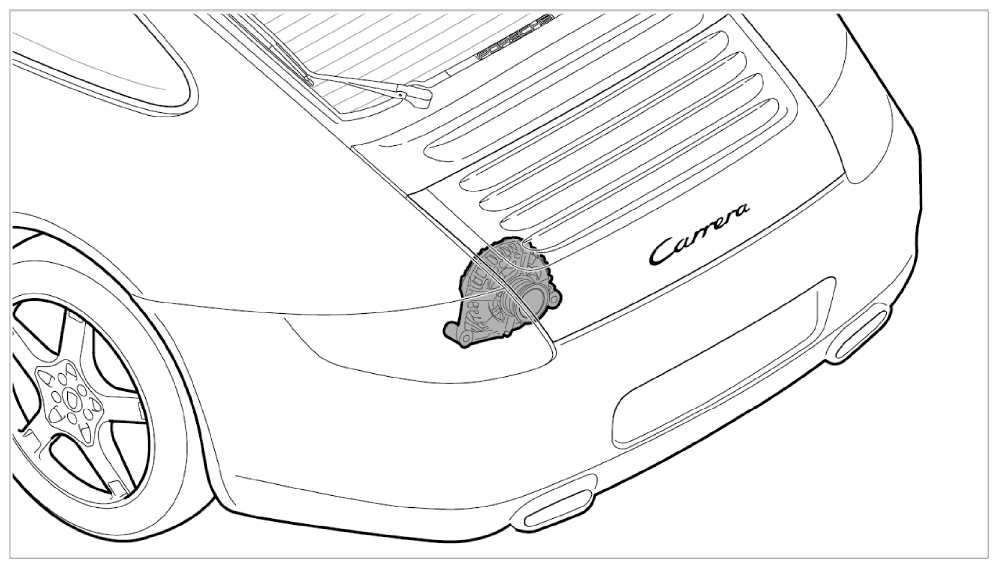

Fig 1: Identifying Generator Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Body parts can be damaged when you remove the generator. The affected areas must be protected with fabric tape.

Stick on fabric tape to protect body parts.
Unscrew the two fastening screws -1- and lift the generator up and out.

Fig 2: Lifting Generator Up
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

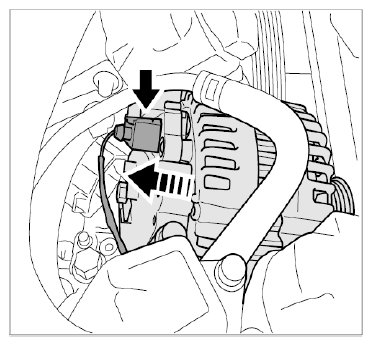

Release and unplug electric connector.

Fig 3: Unplugging Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

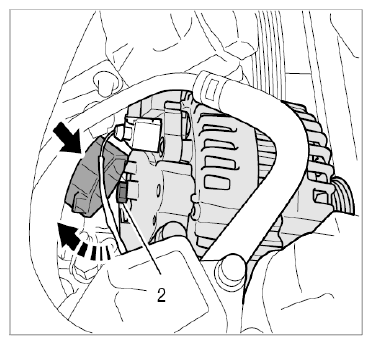

Loosen the cap, unscrew the fastening nut -2- for the B+ line and remove the line.

Fig 4: Removing B+ Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift up the generator and remove it from the engine.
