Installing Generator

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place the generator on the engine, fit the B+ line and tighten the fastening nut -2- . → Tightening torque: 18 Nm (13 ftlb.)

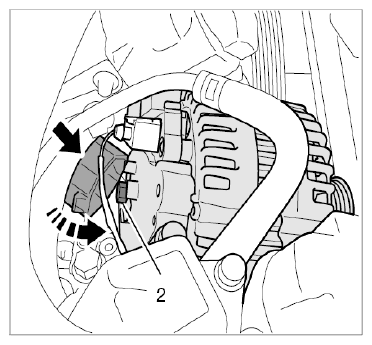

Fig 1: Securing B+ Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the cap.
Press in the electric plug until it clicks into place.

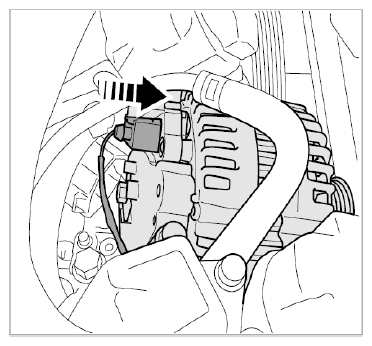

Fig 2: Connecting Electric Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the generator from above and screw in the two fastening screws -1- . → Tightening torque: 15 Nm (11 ftlb.)

Fig 3: Installing Generator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fabric tape from the body.
