Preliminary Work For External Power Connection, Jump Lead Starting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Jump lead starting:

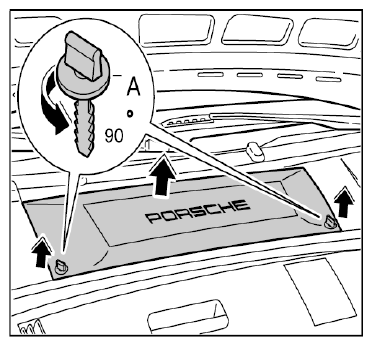

Open the turn-lock fasteners -A- of the battery cover and remove cover.

Fig 1: Opening Turn-Lock Fasteners Of Battery Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

External power connection:

Unclipping the cover for the fuse carrier.

Fig 2: Removing Fuse Carrier Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Jump lead starting:

Open the turn-lock fasteners -A- of the battery cover and remove cover.

Fig 1: Opening Battery Cover Turn-Lock Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

External power connection:

Unclipping the cover for the fuse carrier.

Fig 2: Removing Fuse Carrier Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
