Rework On External Power Connection, Jump Lead Starting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Jump lead starting:

  1. Put on the battery cover and secure by means of the two turn-lock fasteners -A-  .

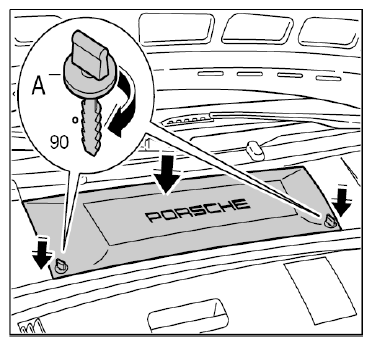

    Fig 1: Turning Battery Cover Turn-Lock Fasteners
    G09819624Courtesy of PORSCHE CARS NORTH AMERICA, INC.

External power connection:

  1. Clip in the cover for the fuse carrier.
