Checking Acid Level Of Low-Maintenance Battery
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Use a commercially available battery filling bottle.
- The correct acid level of the battery is an important factor for long and efficient operation of the battery.
- When the acid level is too low, a capacity loss (performance loss) of the battery occurs, which is caused by the cell plates drying out. If the cell plates are not surrounded by electrolyte (battery acid), this will lead to corrosion of the lead plates, the plate bridges and the cell connectors. The result of the corrosion is that battery functioning cannot be guaranteed. The battery will become unserviceable.
- If the acid level is too high, damage can occur by the battery acid (sulphuric acid/water mixture) leaking out of the battery.
- Switch off ignition and remove ignition key.

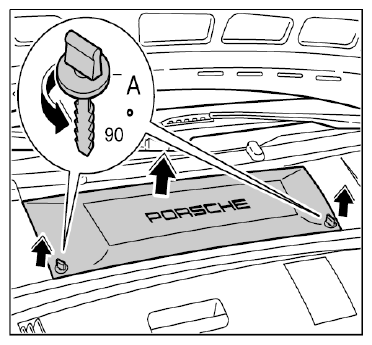

- Remove battery cover.
Emerging battery acid. Observe → 270601 CHECKING BATTERY
- Unscrew battery plugs.
- Shine a torch into the battery. The acid level of the battery must be at the protruding lug.
- If the acid level is too low, refill with distilled water using the battery filling bottle.
- Screw in battery plugs again and ensure that they are seated correctly.
- Remount battery cover.
