Lubricating windstop

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully press out the locking handle -1-  with a screwdriver.

    Lubricate locking pins -2-  on windstop at the left and right with Krytox GPL.

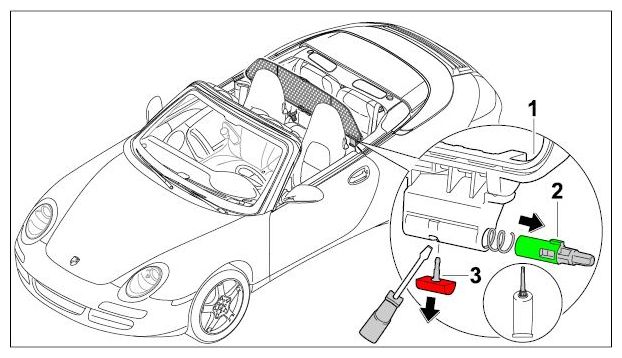

    Fig 1: Lubricating Locking Pins
    G09819099Courtesy of PORSCHE CARS NORTH AMERICA, INC.
