Lubricating Z-flap on rear side trim panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press out cap -1-  with a screwdriver.

    Lubricate spindle bearing -2-  with Osixo Anti Squeak 557.

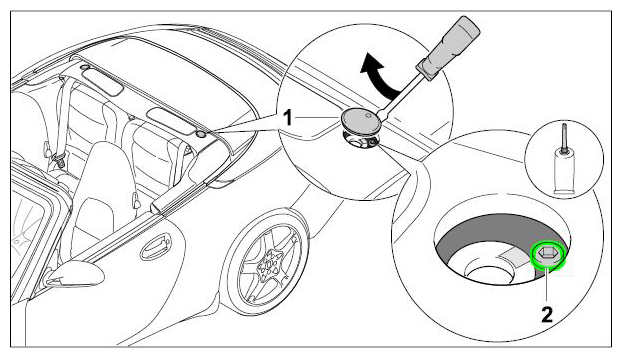

    Fig 1: Lubricating Z-Flap On Rear Side Trim Panel
    G09819096Courtesy of PORSCHE CARS NORTH AMERICA, INC.
