Installing Engine - Compartment Blower

Remove fan motors.

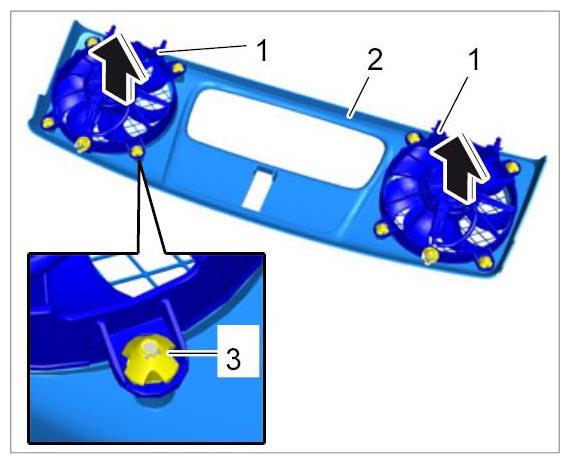

1. 1.1. Pull fans -1- at the left and right off the cover -2- (-arrows- ).
2. 1.2. Check the rubber mountings -3- on the fan.
  Rubber mountings remain on the fan.

  Fig 1: Removing Fan Motors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

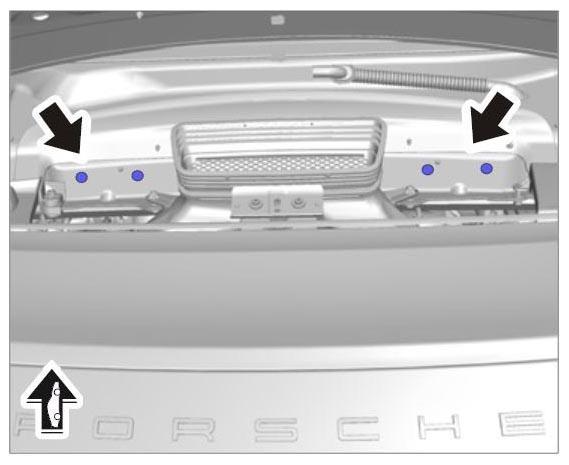

Check rubber mountings with seal -arrows- on the body for damage and replace them if necessary.

Fig 2: Checking Rubber Mountings
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

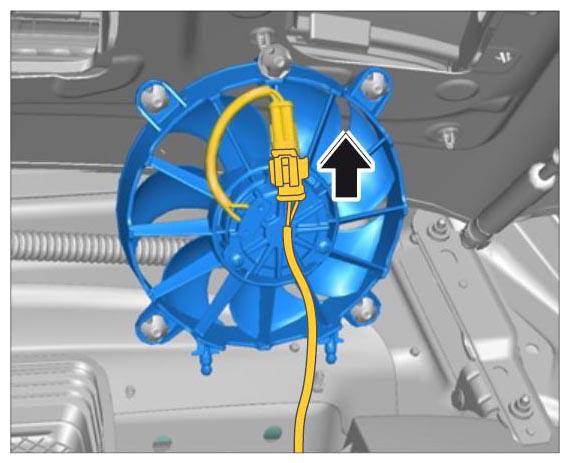

Position the right fan motor on the body and plug in the cable plug -arrow- . Check that it is seated securely.

Fig 3: Locating Fan Motor Locking Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure that the rubber mountings are not crushed or damaged during installation.

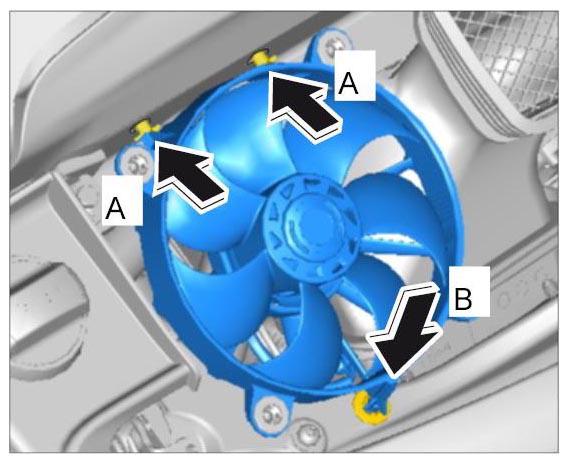

Press front pins into the rubber mountings -arrows A- and rear pins into the rear spoiler bracket or lower part of lid lock -arrow B- .

Fig 4: Securing Fan Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation on the left-hand side is performed in the same way as on the right-hand side.

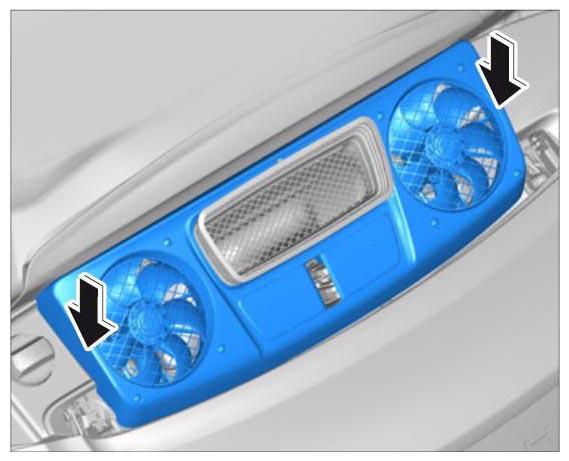

Align the cover of the fan motors with the air guide and fit it -arrows- .

Fig 5: Fitting Cover On Fan Motors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug connection for the rear spoiler and fit cover at the right-hand side of the engine compartment.
If fitted: Retract the rear spoiler manually.
Close the lid.
