Removing Middle Radiator

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Despite the fact that the coolant has been drained, residual amounts of coolant can still emerge at the joints during removal. Have sufficient collecting containers and cloths to hand.

Component overview:

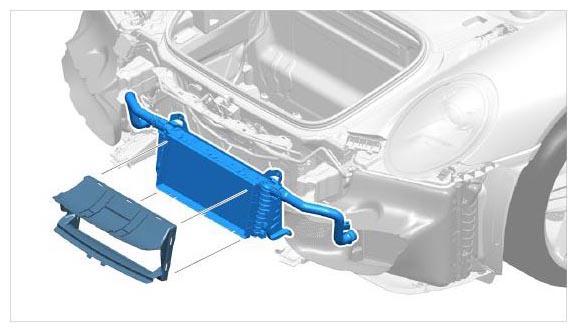

Fig 1: Overview Of Middle Radiator And Air Guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

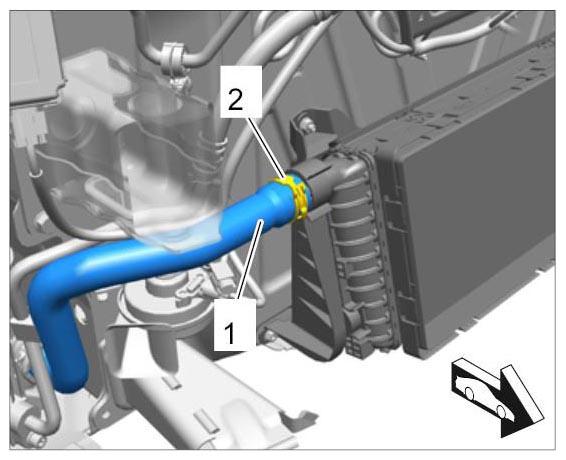

1. Clamp the coolant hose -1-  at the left and right on the radiator using hose clamps.
   WARNING: Caustic fluids

   • Danger of chemical burns

   → Avoid contact with caustic fluid.

   → Wear personal protective gear.

   → Ensure that there is good ventilation.

   → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

2. Pull off coolant hoses on the radiator at the left and right.
   1. 2.1. Open spring band clamps -2-  and pull off hoses.
   2. 2.2. Collect emerging coolant.

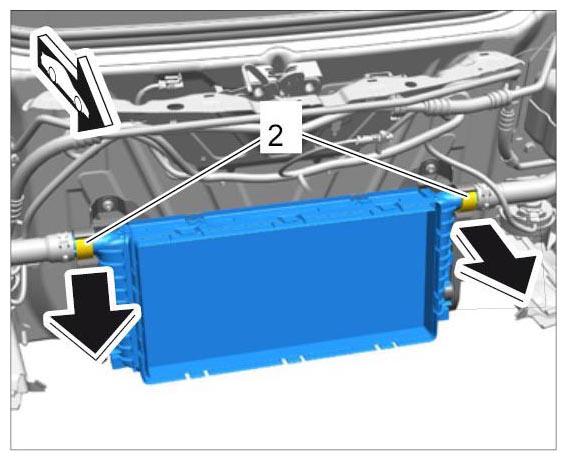

      Fig 2: Identifying Coolant Hoses On Middle Radiator

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove radiator -1-  .
   1. 3.1. Press the radiator to the rear and out of the lower brackets -2-  (-arrow-  ).

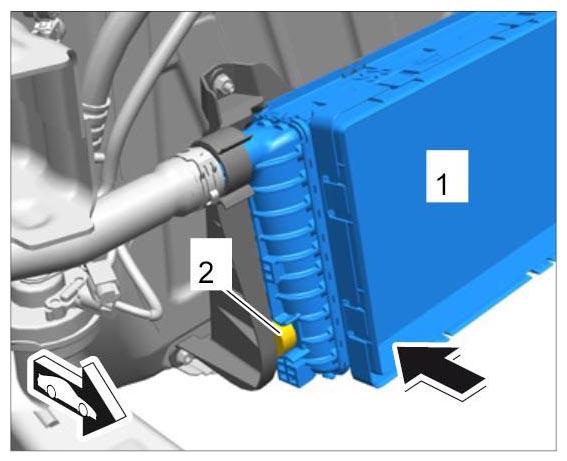

      Fig 3: Pressing Radiator (Bottom)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Press the radiator forward out of the upper brackets -2-  and hold it.
      Fig 4: Pressing Radiator (Top)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 3.3. Take the radiator -1-  out of the bracket.

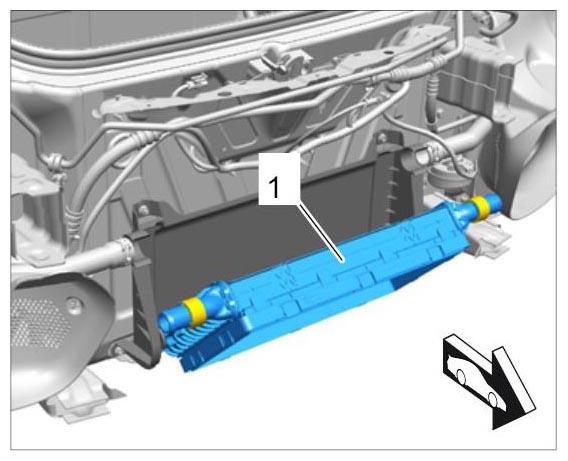

      Fig 5: Identifying Radiator

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
