Installing Middle Radiator

Install the radiator -1- .
1. 1.1. Make sure that the rubber sleeves on the radiator are seated securely in the appropriate holders in the bracket.

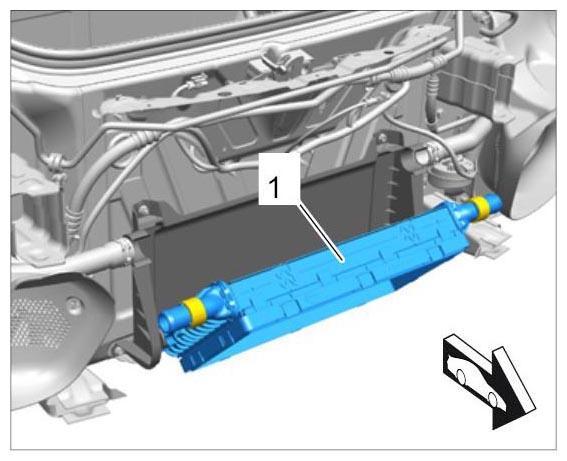

  Fig 1: Identifying Radiator
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
Connect coolant hoses.
1. 2.1. Grease inside of coolant hoses lightly with Kluberplus Gel.
2. 2.2. Fit coolant hose -1- at the left and right using a spring clamp -2- .

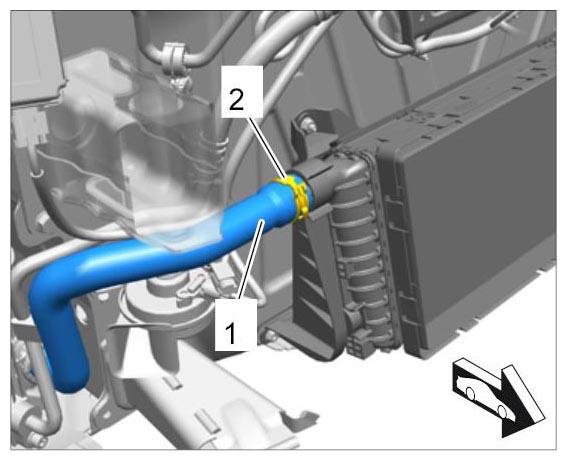

  Fig 2: Identifying Coolant Hoses On Middle Radiator
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
