Removing Coolant Temperature Sensor

  1. Release and pull off cable plug.

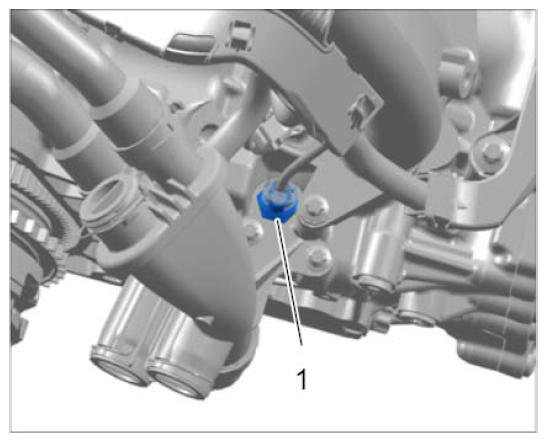

    1. Coolant temperature sensor with cable plug
      Fig 1: Identifying Coolant Temperature Sensor With Cable Plug
      G09991030Courtesy of PORSCHE CARS NORTH AMERICA, INC.

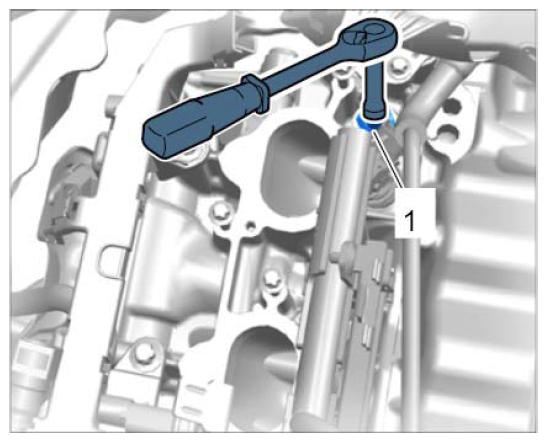

  2. Remove coolant temperature sensor using a long socket-wrench insert -1-  (a/f 19).
    1. 2.1. Replace sealing ring.
    2. 2.2. Clean sealing faces.
      Fig 2: Removing Coolant Temperature Sensor Using Tool
      G09991031Courtesy of PORSCHE CARS NORTH AMERICA, INC.
