Removing Radiator

→ Let the fluid cool down.

→ Wear personal protective gear.

1. Place a container under the radiator to collect emerging coolant.
2. Unscrew fastening screw -3-  .
   Fig 1: Identifying Condenser Threaded Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

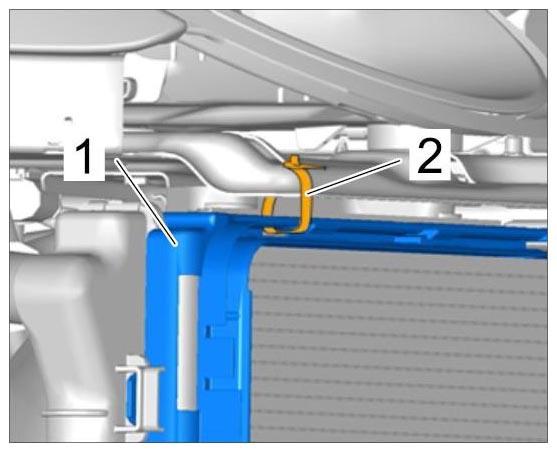

3. Pull air-conditioning condenser -1-  out of the side retaining lugs and suspend it on the body with a tie-wrap -2-  .
   Fig 2: Identifying Air-Conditioning Condenser With Tie-Wrap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Loosen joining socket at the radiator.
   1. 4.1. Unscrew fastening screws -4-  .

      Place collection container underneath.

   2. 4.2. Loosen connecting hose for the middle radiator -3-  from the guide on the radiator.
   3. 4.3. Disconnect vent line -2 -  and loosen it from the guide on the radiator.

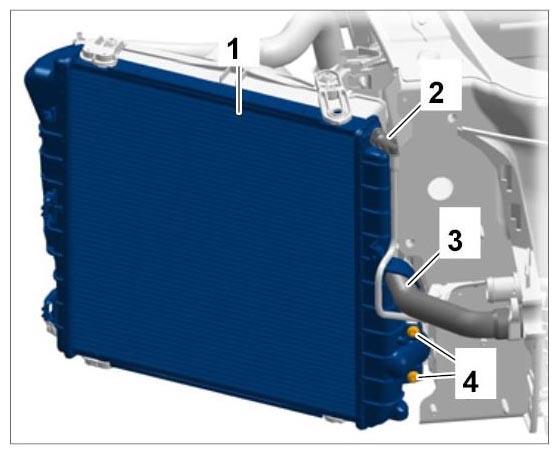

      Fig 3: Connecting Hose To Middle Radiator

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Disconnect supply hose -1-  at the coolant pipe.
   1. 5.1. Remove spring clamps and pull off supply hose -1-  .
   2. 5.2. Refit spring clamps.
   3. 5.3. Close off opposite piece with a clean cloth.
   4. 5.4. Check O-ring on plug connection for damage and replace it if necessary.

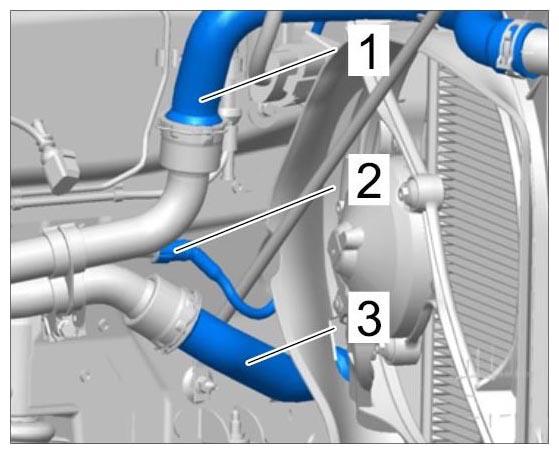

      Fig 4: Identifying Supply Hose Connections

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

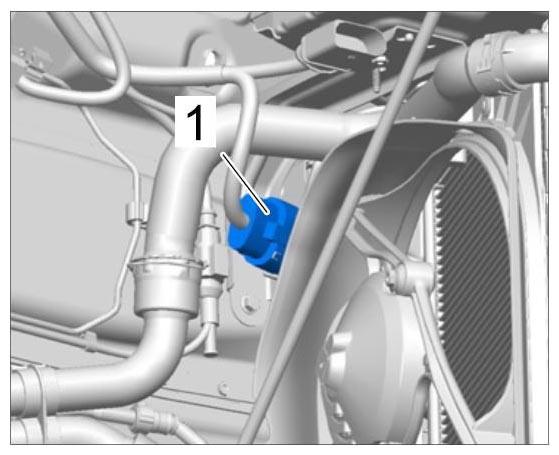

6. Pull off cable plug -1-  .
   Fig 5: Identifying Electric Fan Cable Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

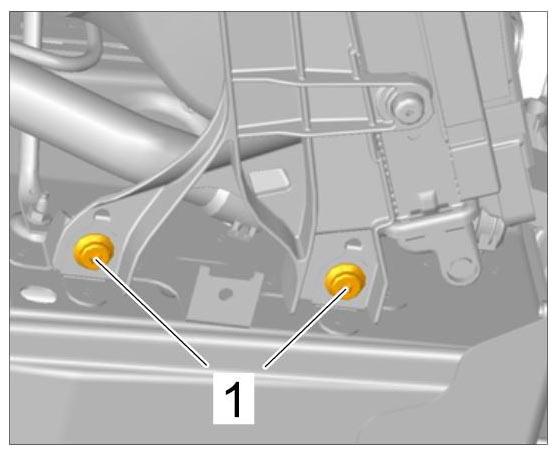

7. Unscrew fastening screws -1-  on the bottom of the radiator.
   Fig 6: Identifying Lower Radiator Support Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

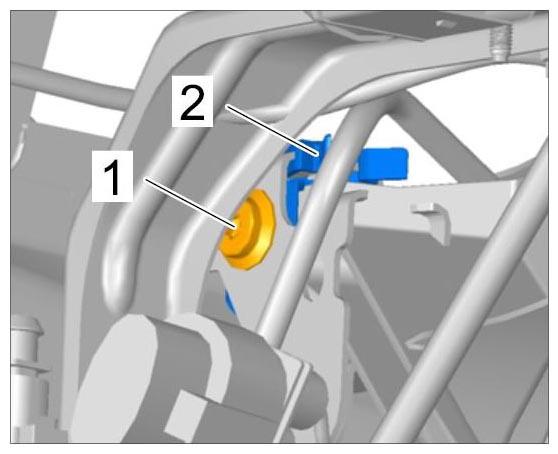

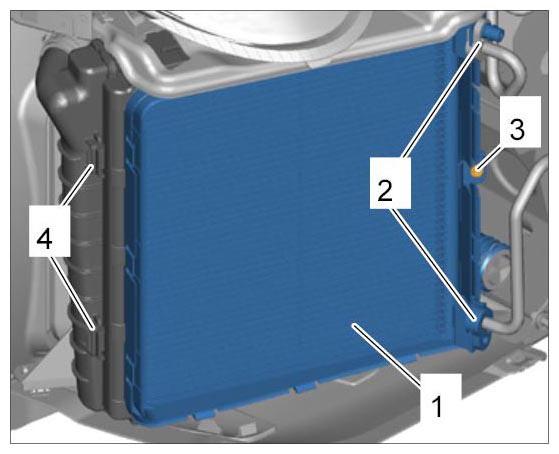

8. Unscrew fastening screw -1-  at the top of the radiator, press fixing clip -2-  together and disengage radiator.
   Fig 7: Identifying Upper Radiator Support With Fixing Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Place radiator on a clean surface.
