Installing Radiator

Information

• Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

1. Position joining socket.

   The help of another person is required.

   1. 1.1. Fit joining socket behind the radiator.
   2. 1.2. Guide connecting hose for the middle radiator -3-  into the guide on the radiator.
   3. 1.3. Fit and tighten fastening screws -4-  . Tightening torque 10 Nm (7.5 ftlb.)
   4. 1.4. Connect vent line -2 -  .

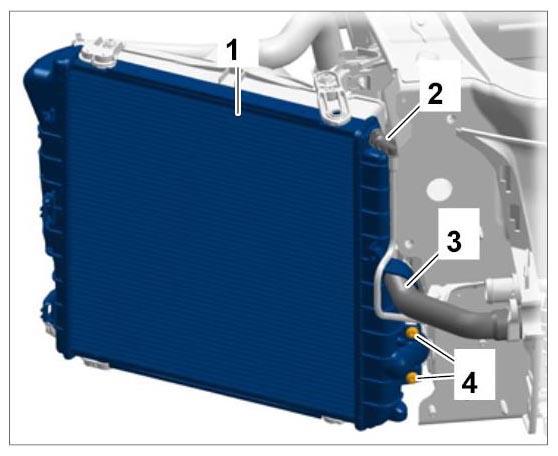

      Fig 1: Connecting Hose To Middle Radiator

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Secure the radiator with the yellow fixing clip -2-  to the body and fit and tighten fastening screw -1-  . Tightening torque 23 Nm (17 ftlb.)

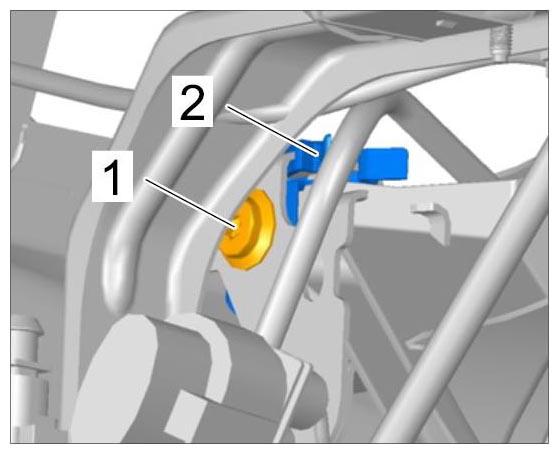

   Fig 2: Identifying Upper Radiator Support With Fixing Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit and tighten fastening screws -1-  at the bottom of the radiator. Tightening torque 23 Nm (17 ftlb.)

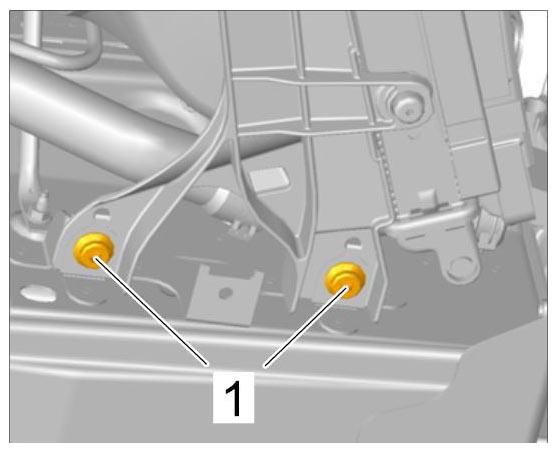

   Fig 3: Identifying Lower Radiator Support Bolts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit supply hose -1-  .
   1. 4.1. Coat O-rings with a light coating of Kluberplus Gel and fit supply hose -1-  .
   2. 4.2. Plug connection must engage correctly; check by pulling on it.

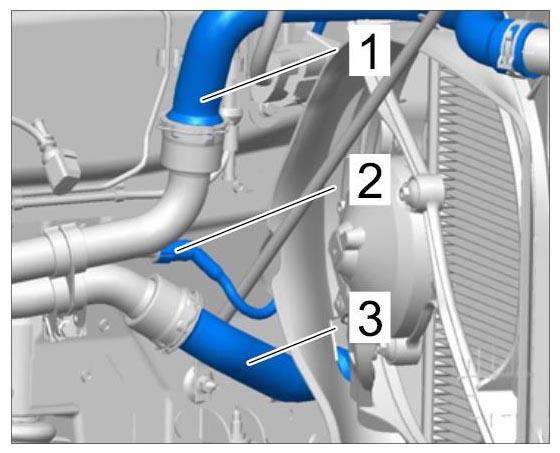

      Fig 4: Identifying Supply And Return Hose Connections

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Connect cable plug -1-  for electric fan.

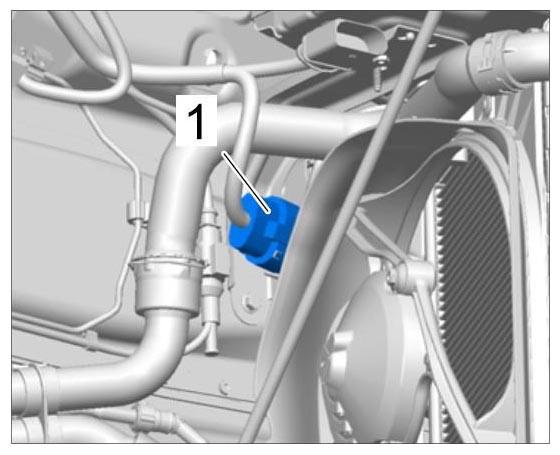

   Fig 5: Identifying Electric Fan Cable Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Engage the condenser in the side clips -4-  on the radiator and tighten fastening screw -3-  . Tightening torque 5 Nm (3.5 ftlb.)

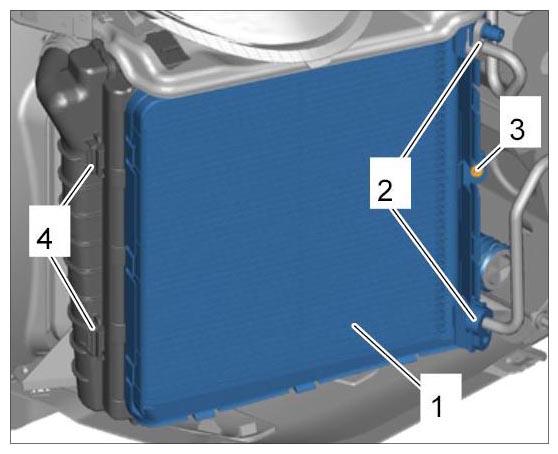

   Fig 6: Identifying Condenser Threaded Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Remove tie-wrap.
