Installing Rear Left Coolant Pipe: Notes

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

1. Secure the left coolant pipe.
   1. 1.1. Place coolant pipe in installation position.
   2. 1.2. Clip coolant pipe into the holders -A-  .
   3. 1.3. Close the retaining bar -B-  .

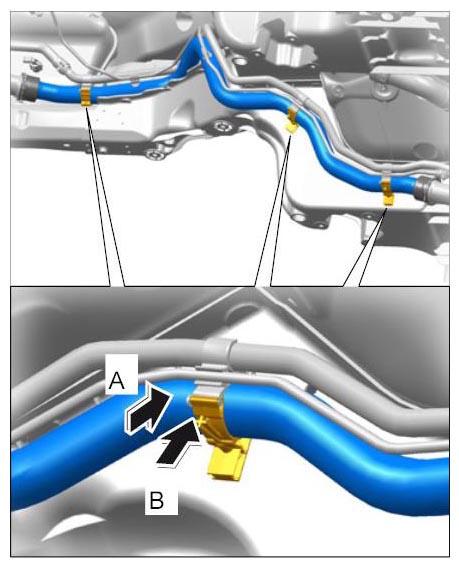

      Fig 1: Securing Coolant Pipe

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      • Check O-rings on the plug-in couplings and replace them if necessary.
      • Clean plug connection and coolant hoses before assembly.
      • Coat O-rings and coolant hoses with Kluber Plus Gel (Part No. 000.043.205.93).
      • Remove stoppers before fitting the coolant lines and hoses.
2. Connect coolant hoses.
   1. 2.1. Fit spring clamps -A-  .
   2. 2.2. Connect coolant hoses -B-  and check that they are seated securely.

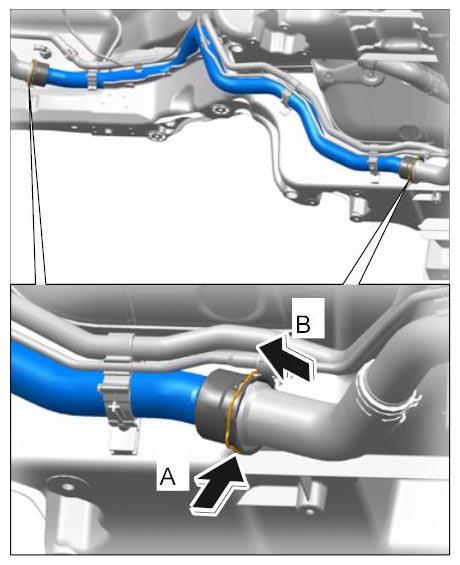

      Fig 2: Connecting Coolant Pipe
