WM 196419 Removing And Installing Rear Coolant Pipe (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition"): Information

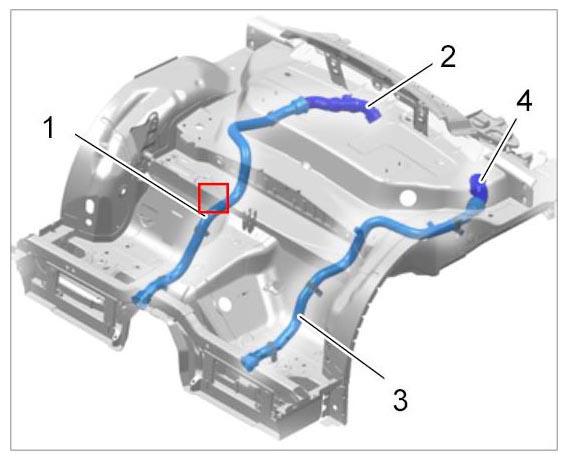

Fig 1: Identifying Rear Coolant Pipe Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Coolant pipe, rear left
2. Coolant hose, rear left
3. Coolant pipe, rear right
4. Coolant hose, rear right
