Installing Front Coolant Pipes

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Information

• Check O-rings on the plug-in couplings and replace them if necessary.
• Clean plug connection and coolant hoses before assembly.
• Coat O-rings and coolant hoses with Kluber Plus Gel (Part No. 000.043.205.93).
• Remove stoppers before fitting the coolant lines and hoses.

1. Install upper front coolant pipe at the center.

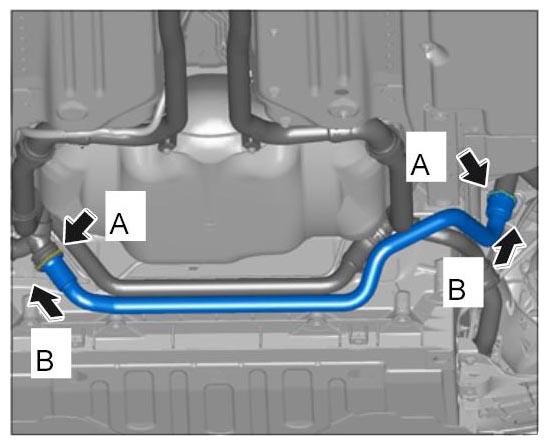

   Fig 1: Installing Upper Front Coolant Pipe On Center

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Fit spring clamps -A-  .
   2. 1.2. Fit coolant pipe into the connections -B-  and check that it is seated securely.
2. Secure upper front coolant pipe at the center.

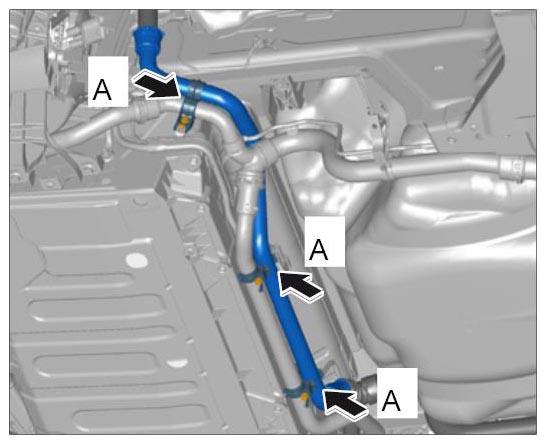

   Fig 2: Securing Upper Front Coolant Pipe On Center

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Clip upper front coolant pipe at the center into the holders -A-  .
3. Install lower front coolant pipe at the center.

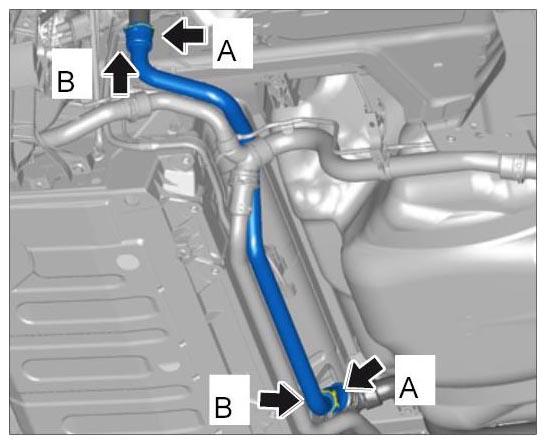

   Fig 3: Installing Lower Front Coolant Pipe On Center

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 3.1. Fit spring clamps -A-  .
   2. 3.2. Fit coolant pipe into the connections -B-  and check that it is seated securely.
4. Secure lower front coolant pipe at the center.

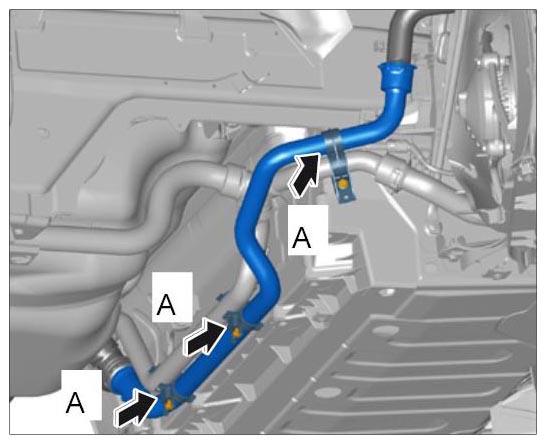

   Fig 4: Securing Lower Front Coolant Pipe On Center

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Clip coolant pipe into the holders -A-  .
5. Install left coolant pipe.

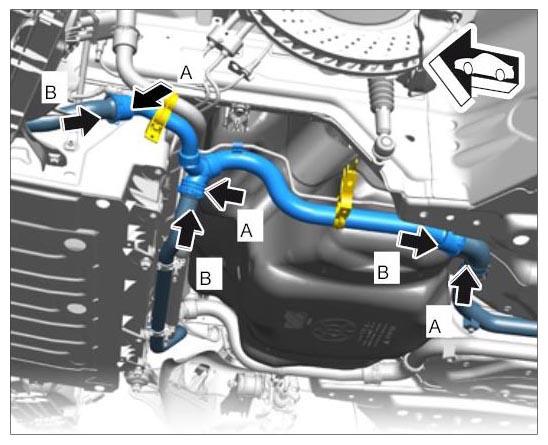

   Fig 5: Installing Left Coolant Pipe

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 5.1. Fit spring clamps -A-  .
   2. 5.2. Fit coolant pipe into the connections -B-  and check that it is seated securely.
6. Clip in fastening elements on the left coolant pipe.

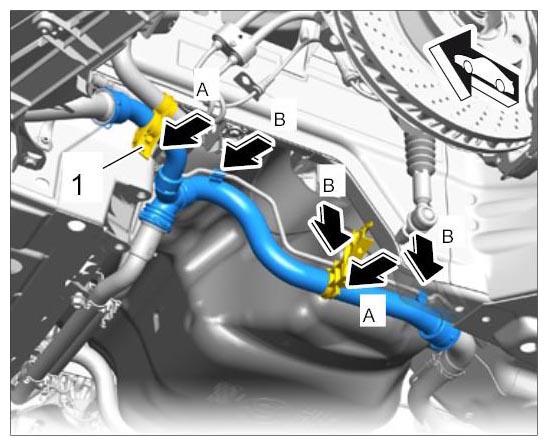

   Fig 6: Installing Left Coolant Pipe Fastening Elements

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 6.1. Clip in holders for coolant pipes -A-  .
   2. 6.2. Clip in vent line -B-  .
   3. 6.3. Tighten screw (M6 x 35) on the holder -1-  . Tightening torque 10 Nm (7.5 ftlb.)
   4. 6.4. Guide cable duct holder into the coolant line bracket and screw in the fastening screw.
7. Install right coolant pipe.

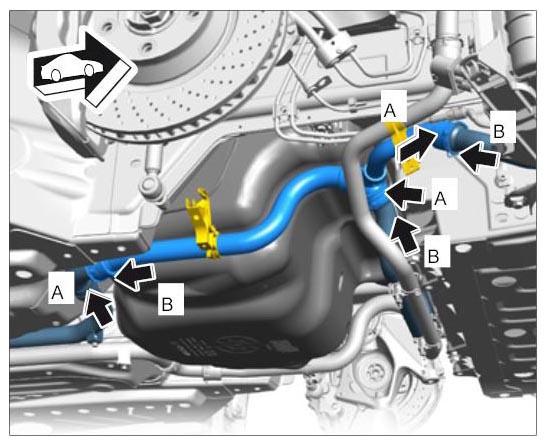

   Fig 7: Installing Right Coolant Pipe

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 7.1. Fit spring clamps -A-  .
   2. 7.2. Fit coolant pipe into the connections -B-  and check that it is seated securely.
8. Secure the right coolant pipe.

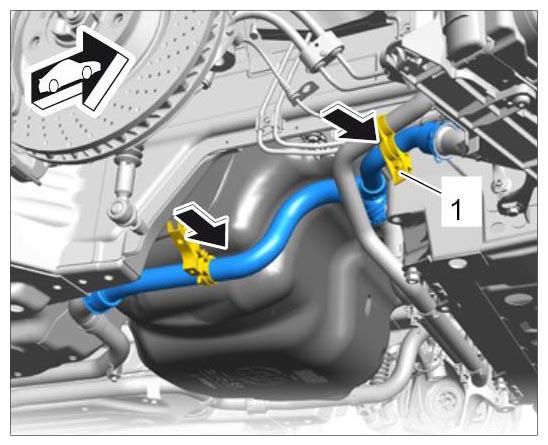

   Fig 8: Installing Right Coolant Pipe Fastening Elements

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 8.1. Clip in fastening elements on the right coolant pipe -arrow-  .
   2. 8.2. Tighten screw (M6 x 35) on the holder -1-  . Tightening torque 10 Nm (7.5 ftlb.)
