WM 196419 Removing And Installing Front Coolant Pipes (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition"): Information

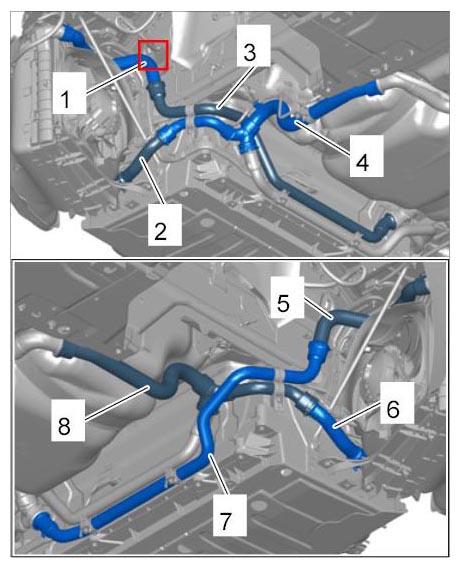

Fig 1: Identifying Front Coolant Pipes Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Coolant hose on radiator, upper left
2. Coolant hose on radiator, lower left
3. Upper front coolant pipe, center
4. Coolant pipe, front left
5. Coolant hose on radiator, upper right
6. Coolant hose on radiator, lower right
7. Lower front coolant pipe, center
8. Coolant pipe, front right
