WM 196419 Removing And Installing Center Coolant Pipe (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition"): Information

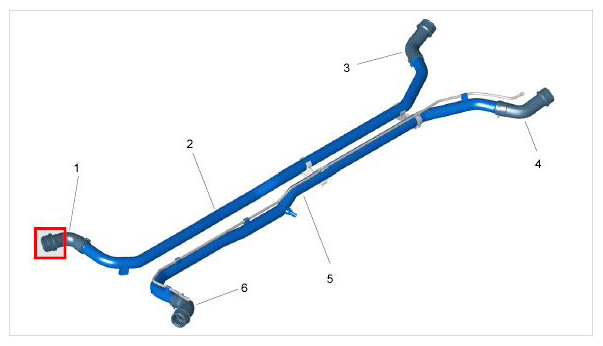

Fig 1: Identifying Center Coolant Pipes Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Coolant hose, front right
2. Coolant pipe, center right
3. Coolant hose, rear right
4. Coolant hose, front left
5. Coolant pipe, center left
6. Coolant hose, rear left
