Component Overview - Coolant Regulator

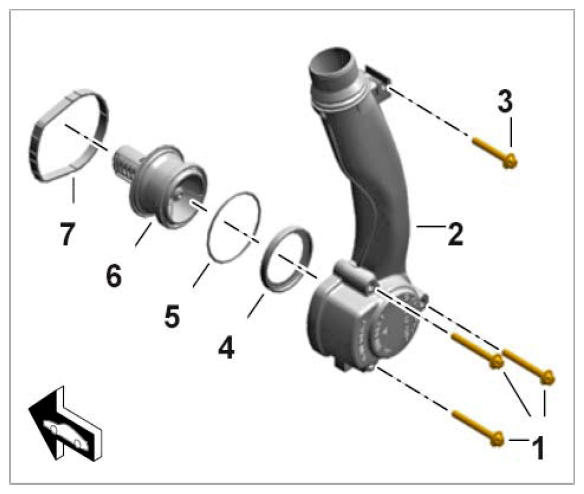

Fig 1: Overview Of Coolant Regulator Housing
G09991017Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Torx screws, M6 x 50 → Tightening torque: 13 Nm (9.5 ftlb.)
  2. Coolant regulator housing
  3. Torx screw, M6 x 40 → Tightening torque: 13 Nm (9.5 ftlb.)
  4. Inner coolant regulator seal
  5. Outer coolant regulator seal
  6. Coolant regulator
  7. Seal for coolant regulator housing
