Component Overview Of Coolant Distributor Housing

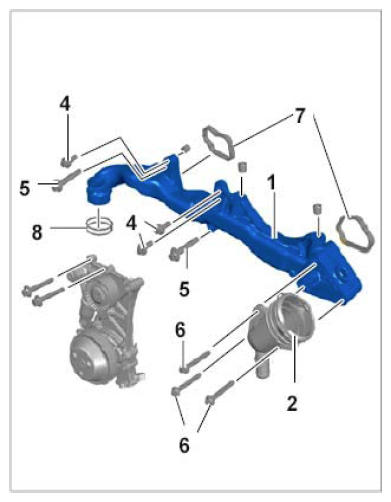

Fig 1: Overview Of Coolant Distributor Housing
G09991019Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unit carrier (coolant distributor housing)
  2. Coolant flange
  3. Bracket for coolant pump
  4. External Torx screw, M8 x 35
  5. External Torx screw, M8 x 50
  6. External Torx screw, M8 x 70
  7. Seals
  8. O-rings
